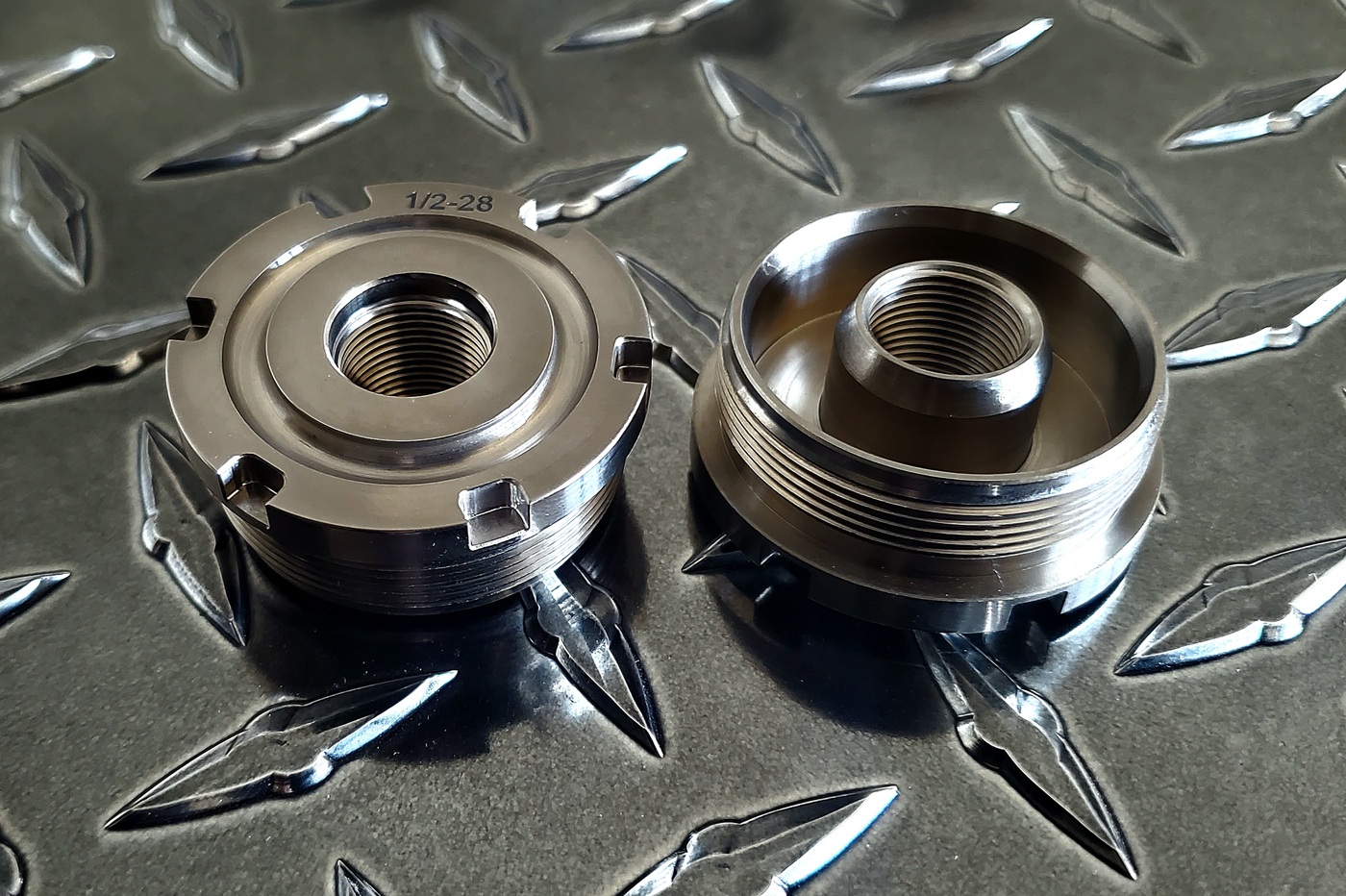

1.500″ x 1.360″ Tube Adapters

Threaded adapters for 1.500 OD x 1.360″ ID Suspension reservoir pressure tubes

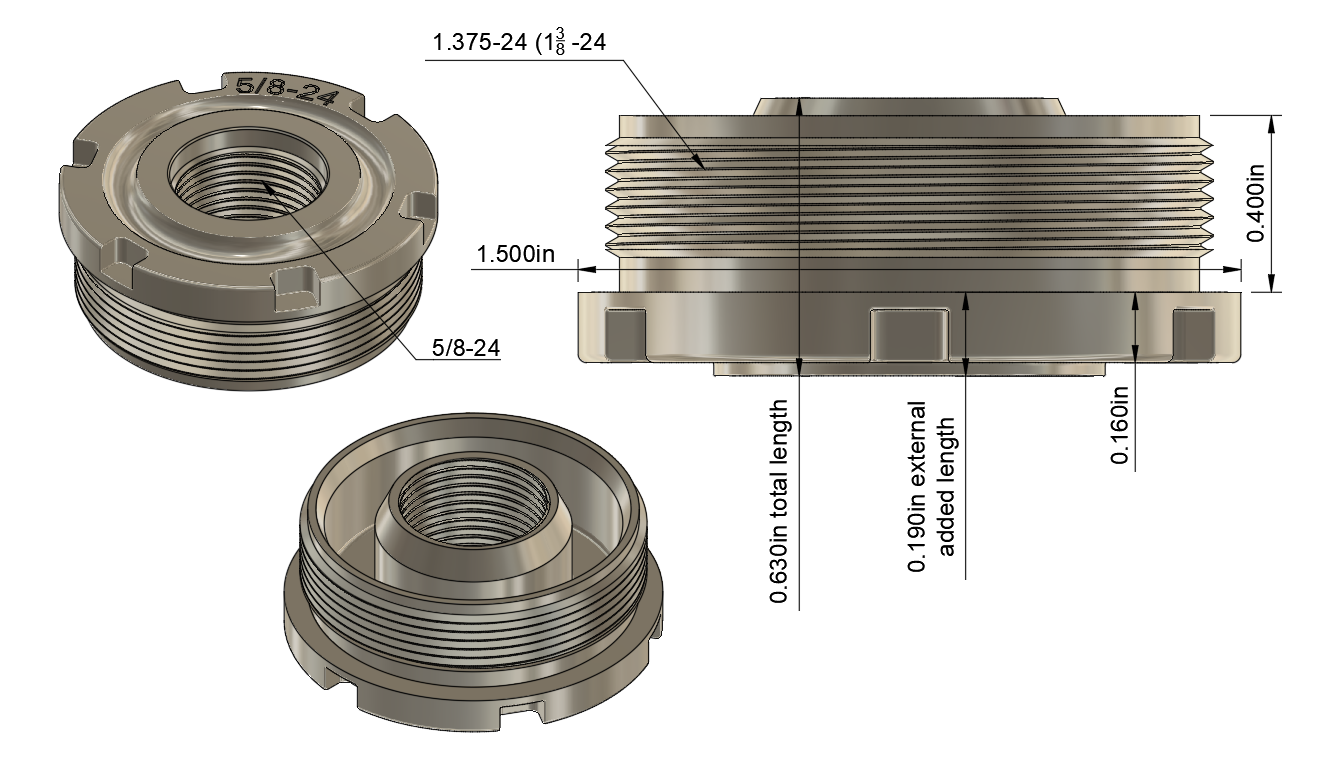

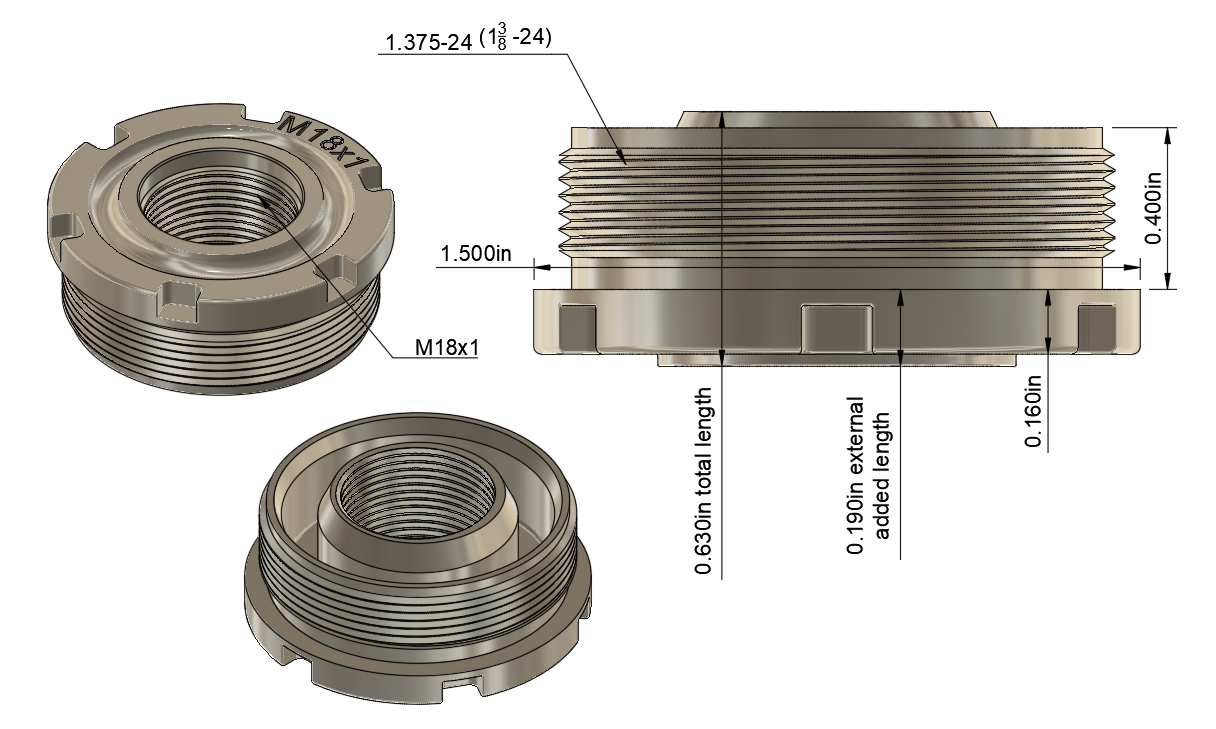

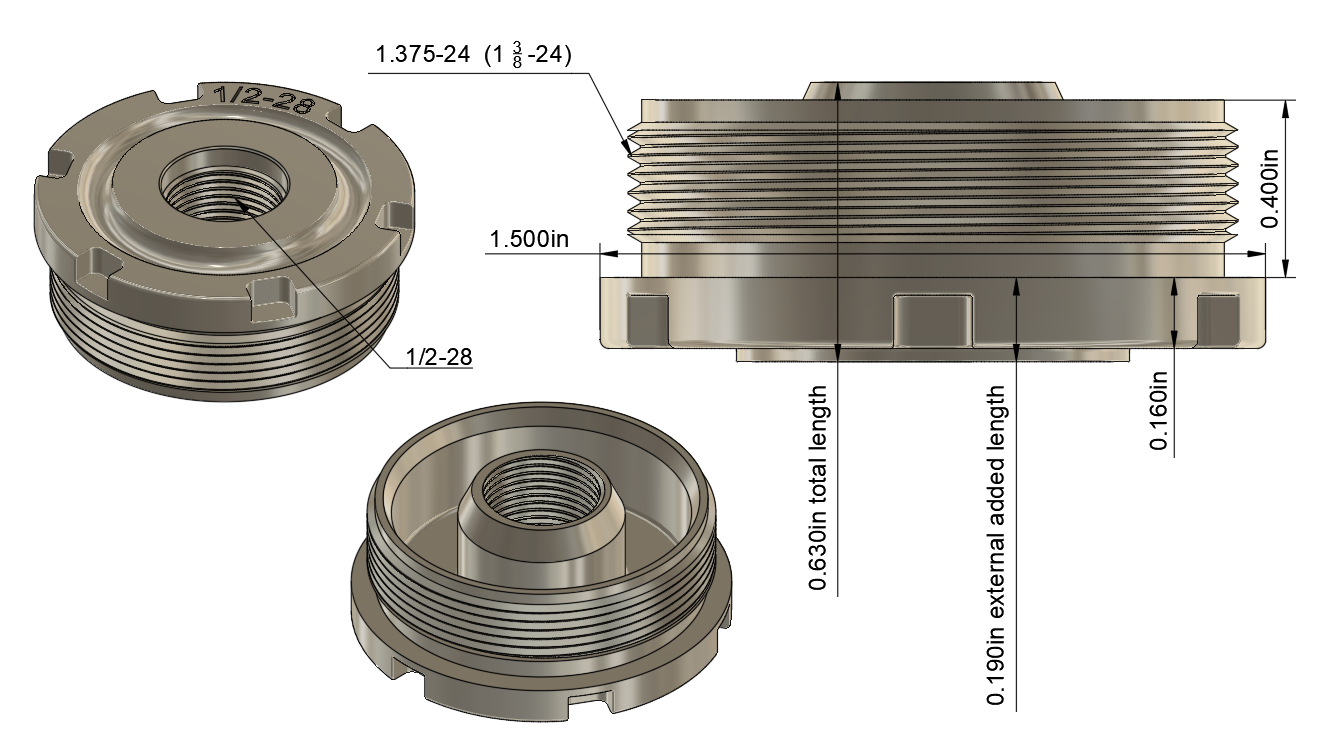

Industry standard externally threaded 1.375-24 compatible with many other applications

• Lightweight design (see weights table below)

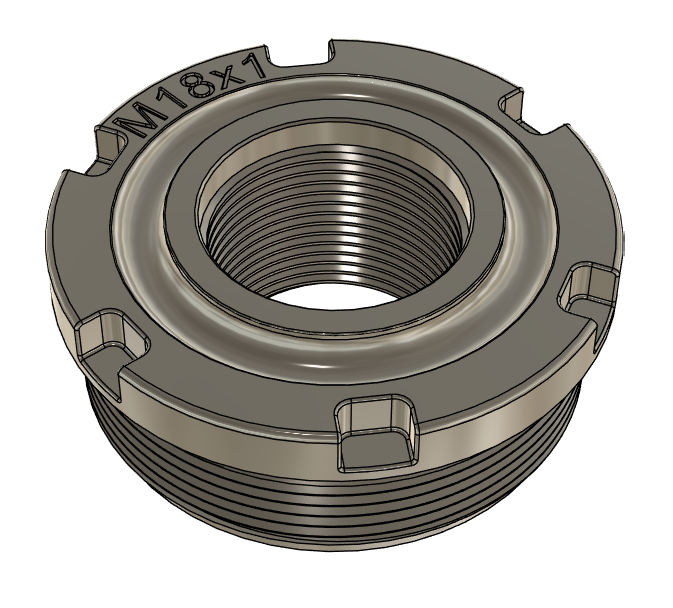

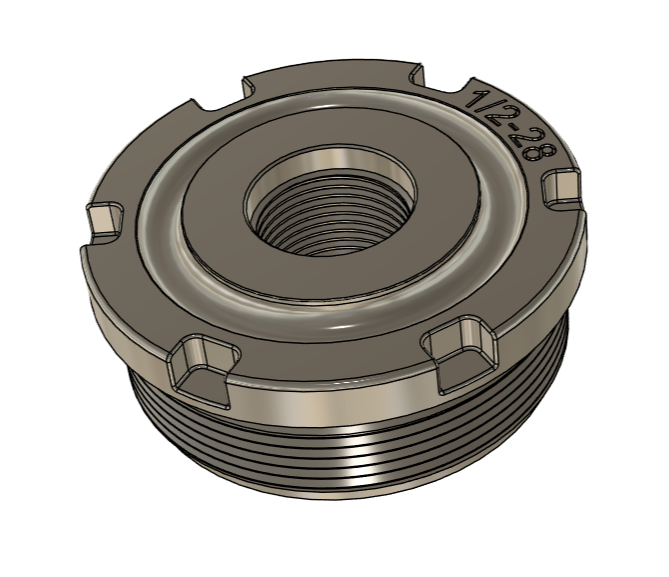

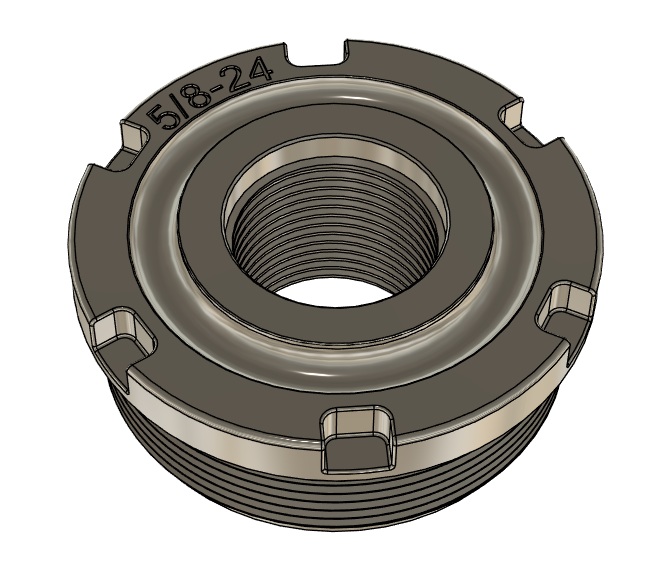

• Female threads available in most common reservoir pressure hose fitting sizes
• Extends 0.400″ into tube
• Deep spanner wrench cuts to prevent cam-out
  • Adapters install/remove with a adjustable spanner wrench. Best wrench is the #OTC 4791 adjustable spanner. Other hook spanners will work but may require grinding down the oversized hook to fit.
  • ⚠️When using the spanner- make sure the inner heel of the handle (fulcrum point) is levering on the adapter and not on the tube edge!!!
• ALWAYS MAKE SURE THREADS ARE CLEAN before assembly!
  • Using Rocksett adhesive on the EXTERNAL (tube interface) threads is recommended. (Substitute with Threadlock at your own risk)

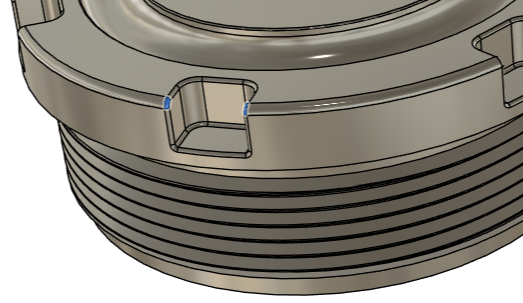

⚠️ Machining error left a sharp edge on the edges of hook spanner cuts (marked blue). Smooth it out with a few strokes of 220 sandpaper
