1.025″ Modular Valve Spring Retainers

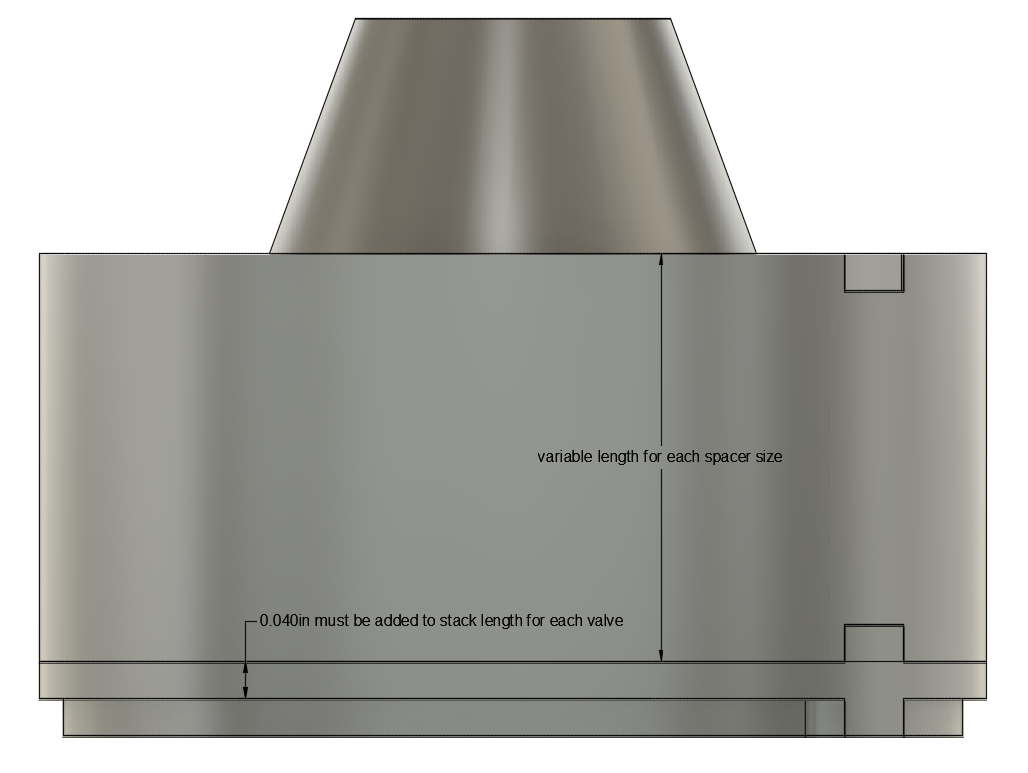

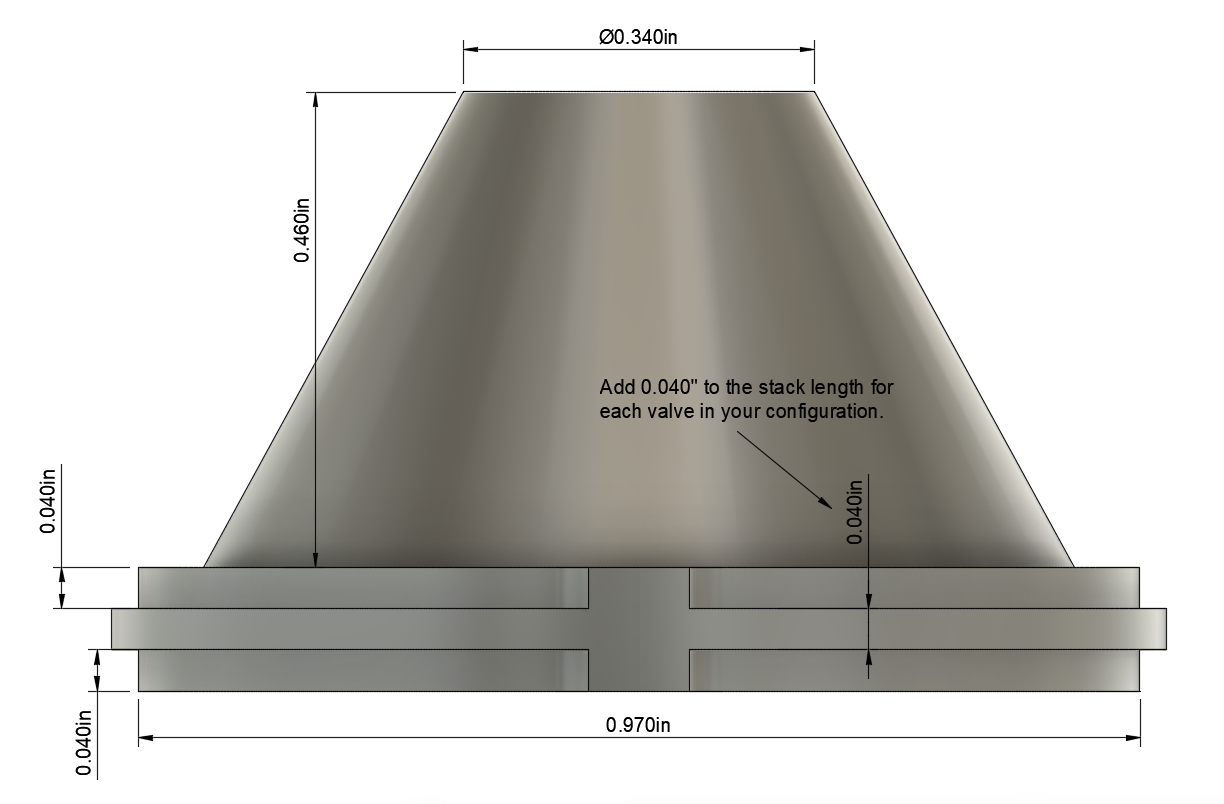

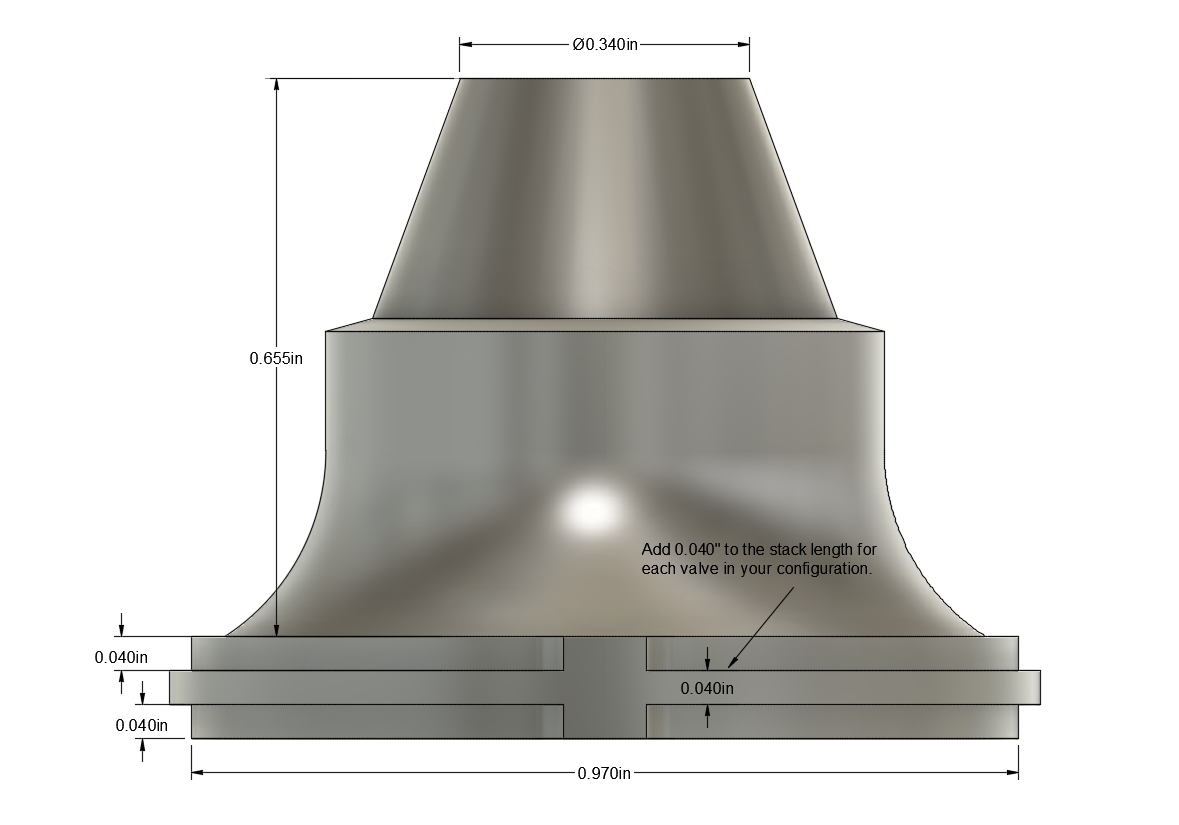

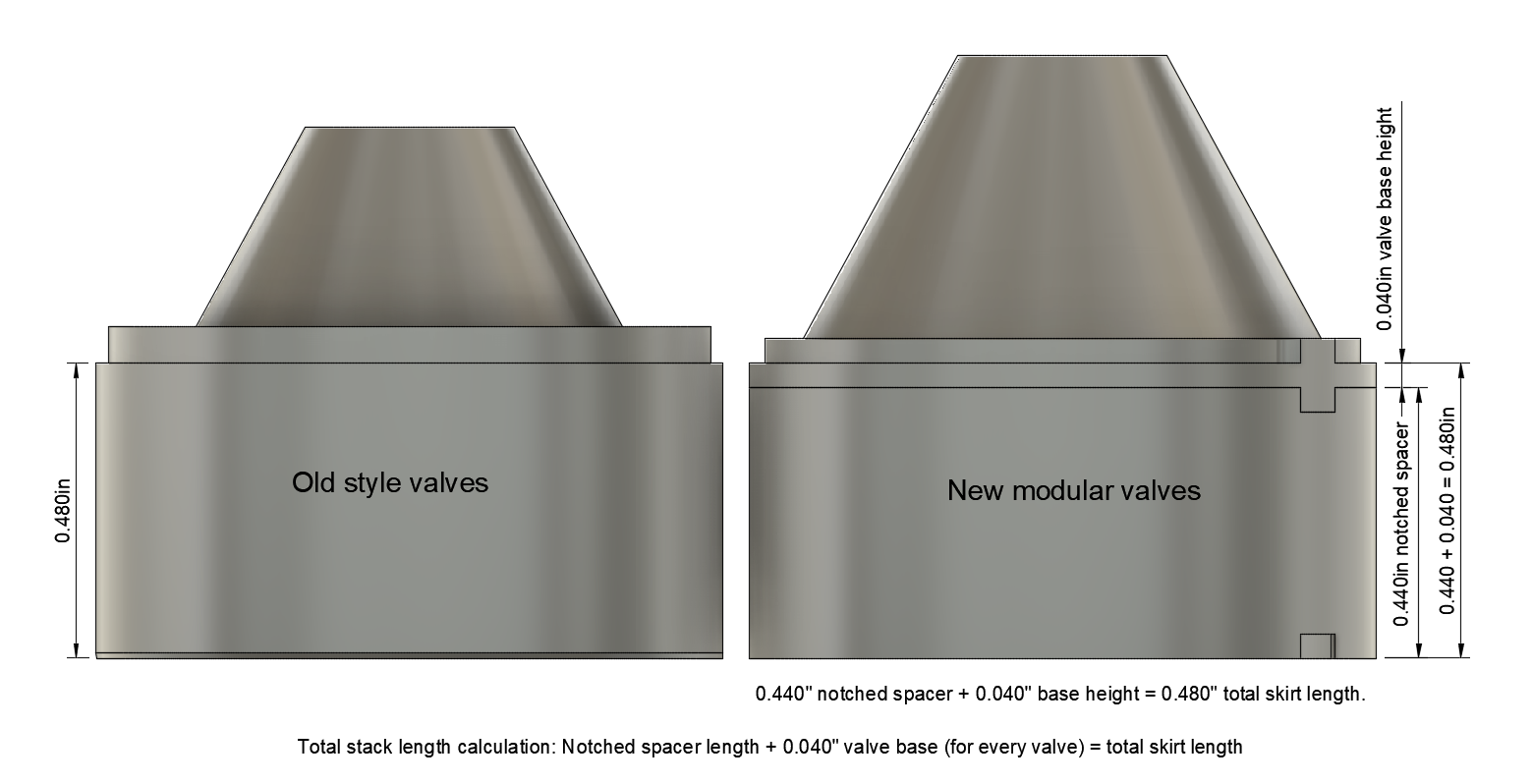

→Need help with configuring your VSR stack length? VSR Stack Configurator

1.025″ Tab & Notch Modular Valve Spring Retainer System

⚠️ NOTICE: Avoid inserting a modular notched spacer without a valve attached to it. The sharp edges at the notch can snag inside the bore, when attached to a valve it will slide smoothly.
⚠️ If you get a spacer without a valve stuck in the bore- use only wood or plastic (pen/marker, wood BBQ skewer) to slowly and evenly push and tap it out. DO NOT use a screwdriver or other metal prying tool!

→Need to make the skirt length a bit shorter? Apply even pressure and rub it in a figure 8 pattern on sandpaper placed over a flat surface.

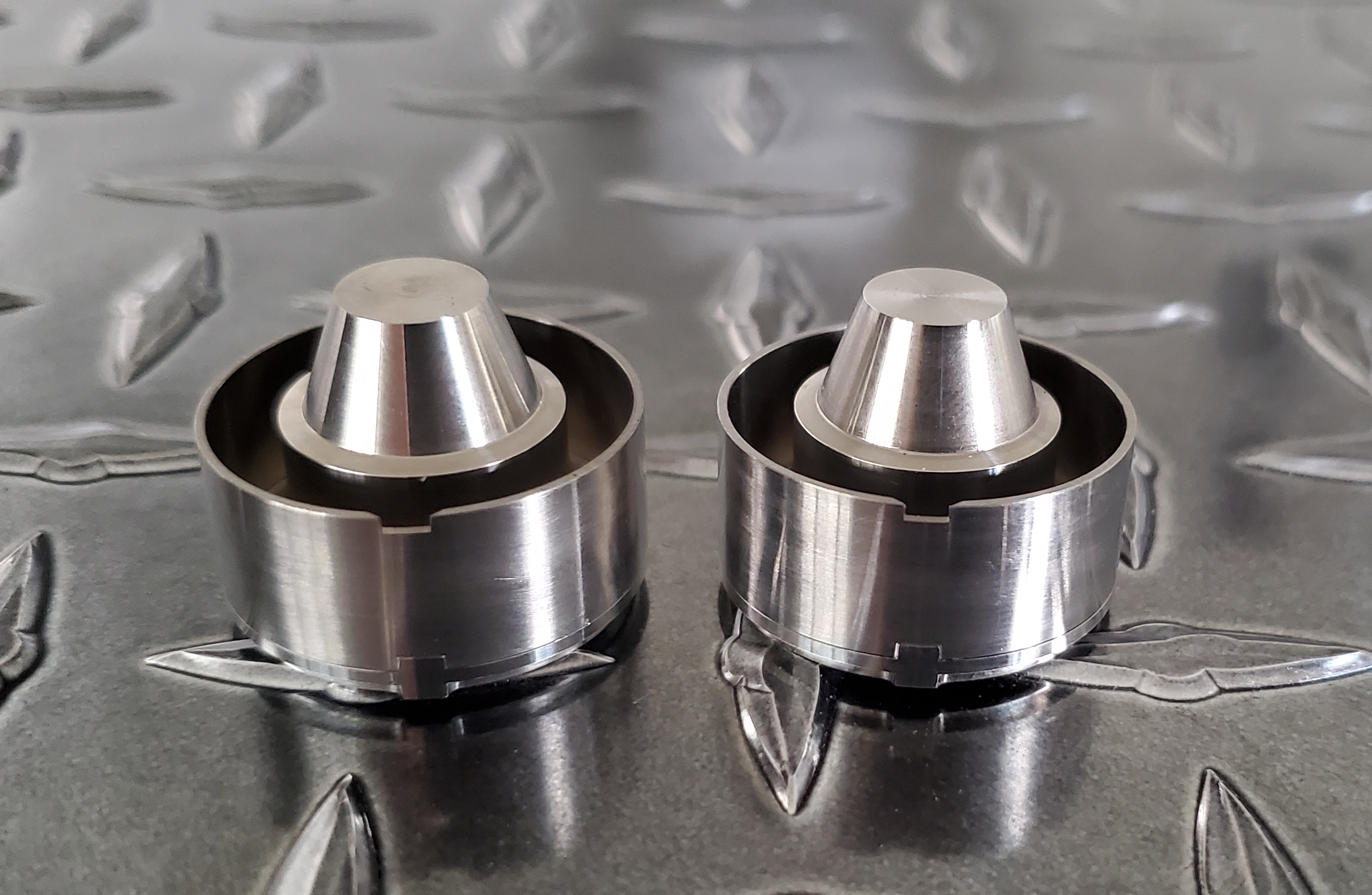

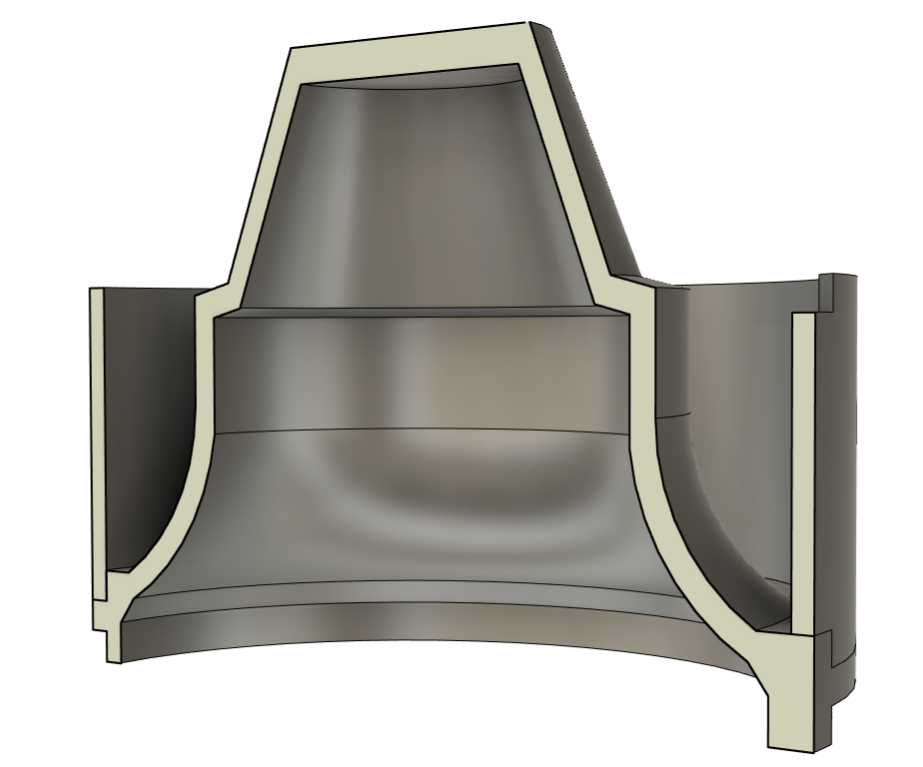

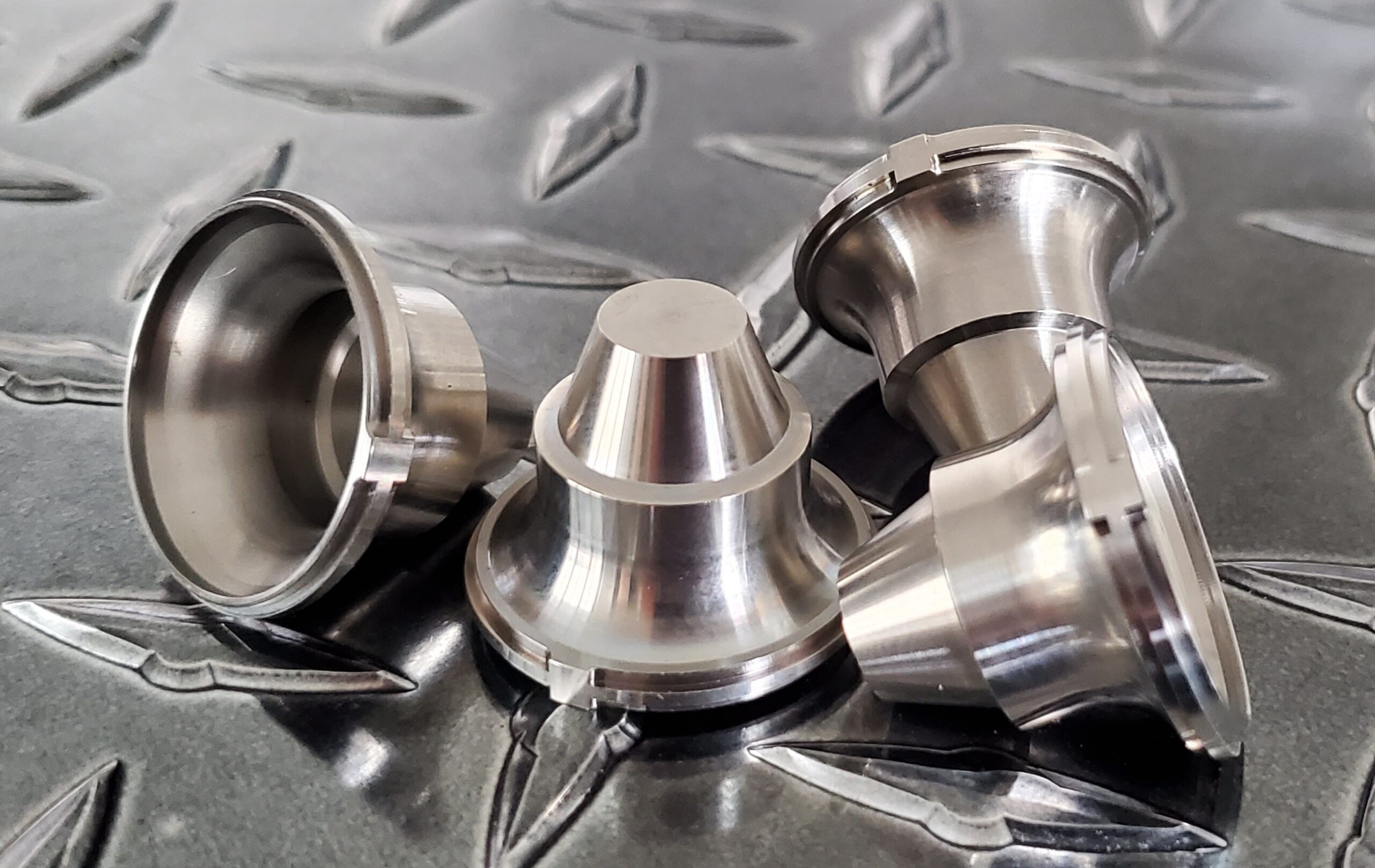

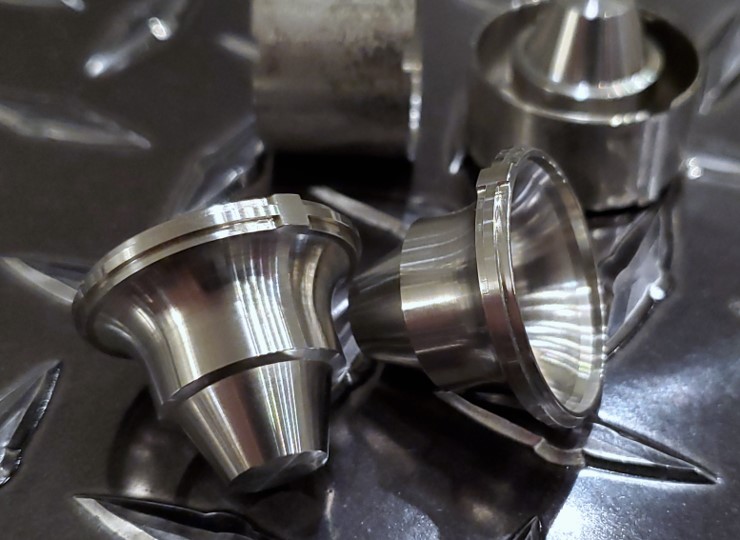

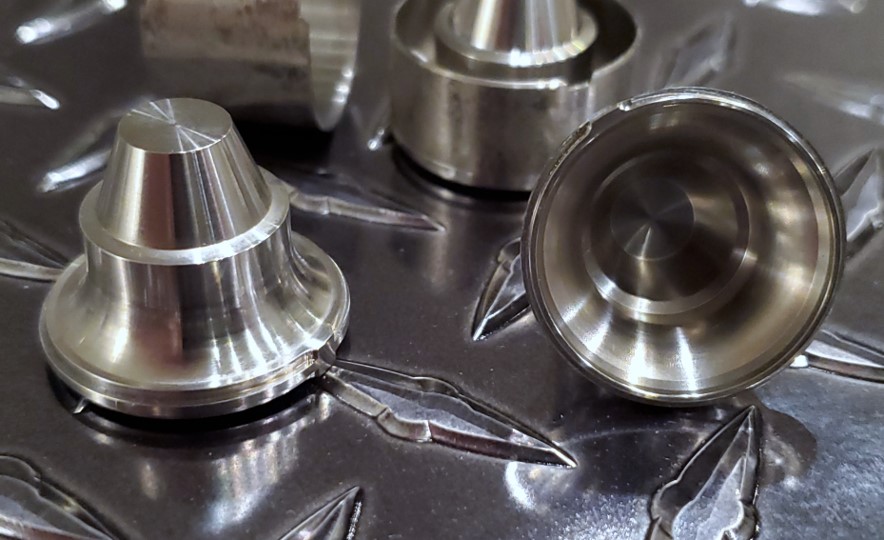

1.025″ unfinished customizable tabbed valve spring retainers (VSR)

• 1.025″ nominal size (1.022″ actual OD)
• 0.330″ face diameter
• Ultralight engineered design
• Fully customizable to fit the valve stems of your choice
• Valve seat angle (or radius) matches industry standard seat cuts for easy fitment
• Precision machined to give valves a better sealing surface.
• Tabbed design for better alignment
• Skirt / spacer -less modular design gives you more build options
  • Modular skirt / spacer design gives you more build options, mix and match any material with any style of valve
  • Notched modular spacers are available in many sizes to fit your needs.

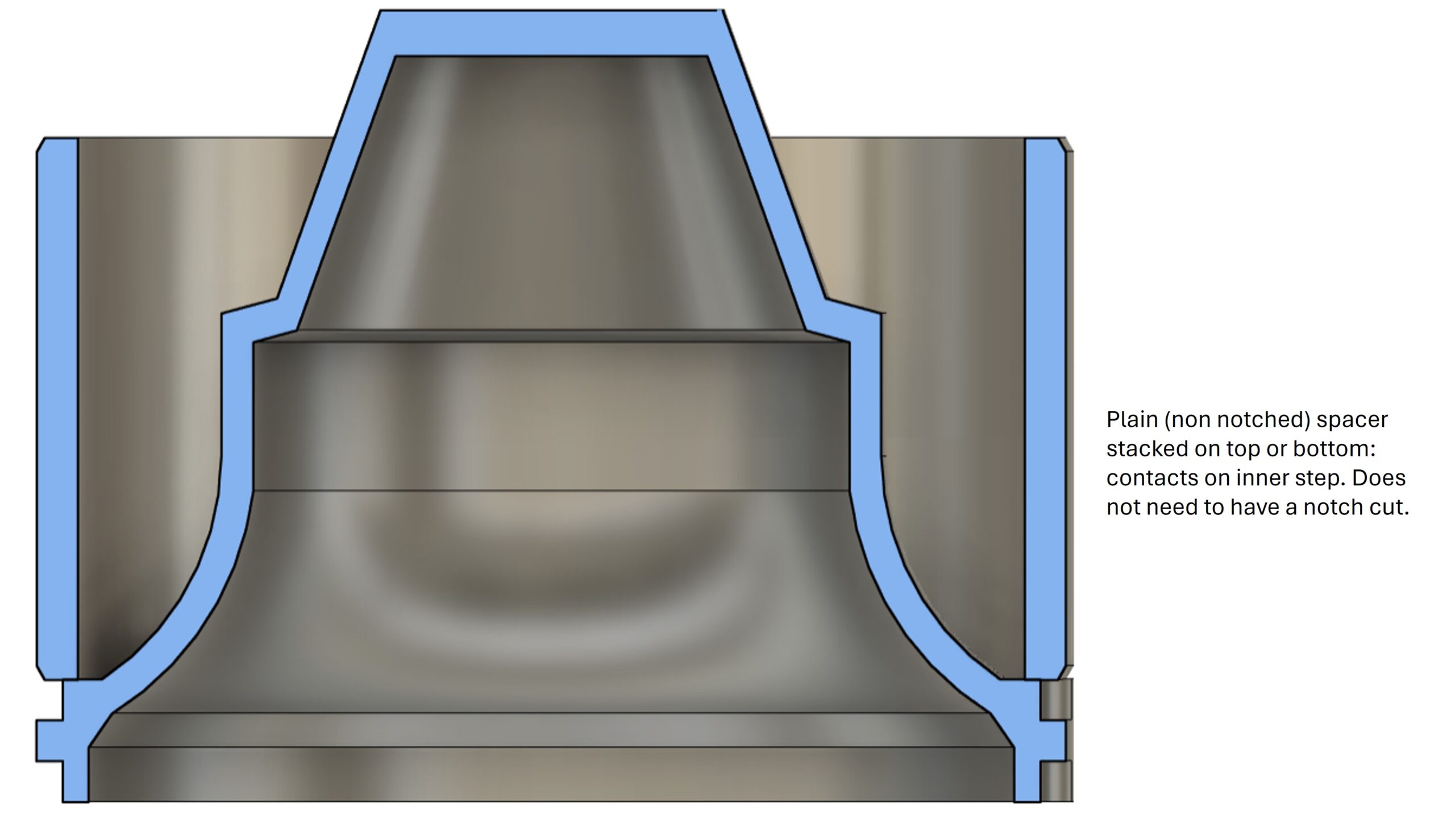

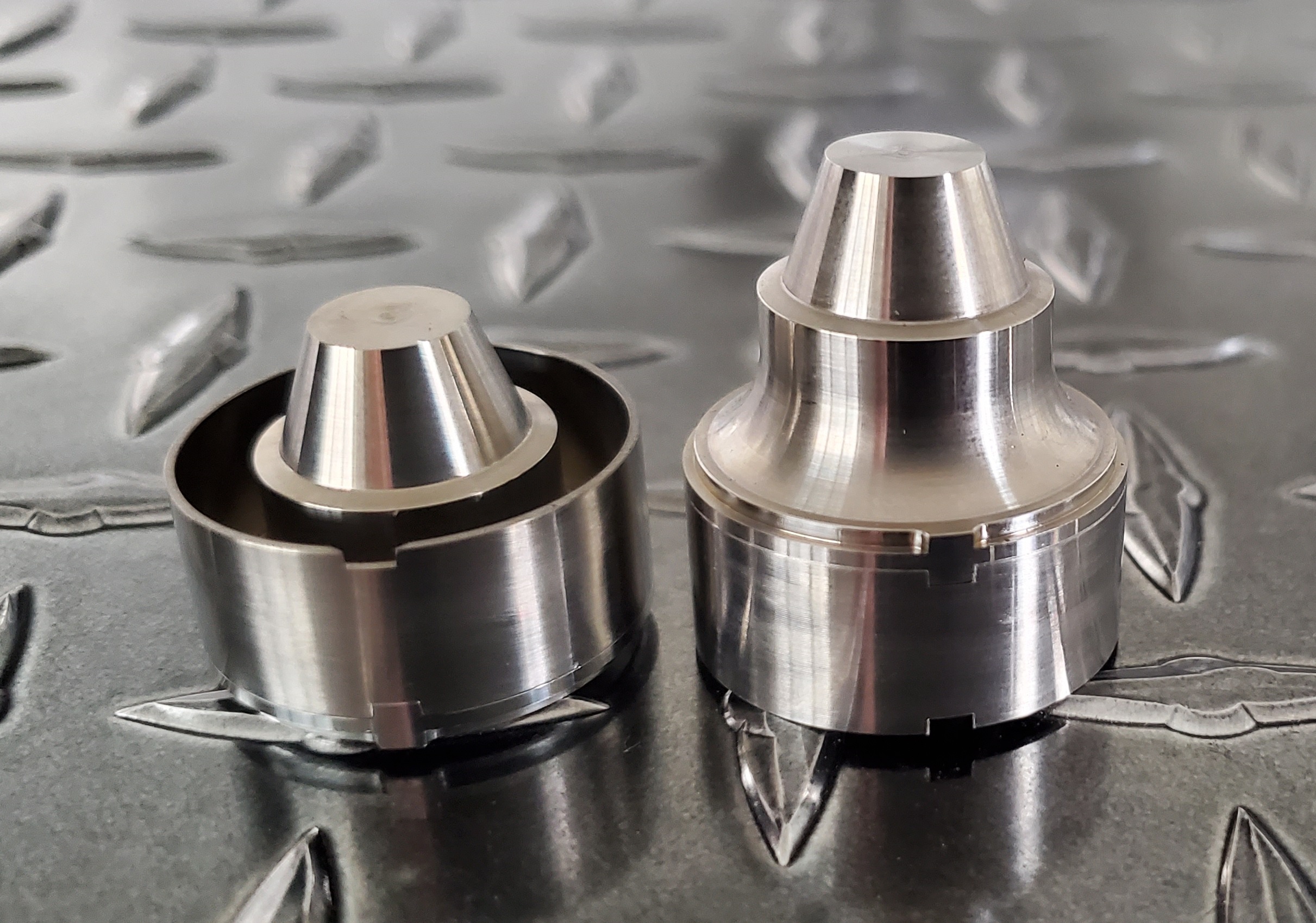

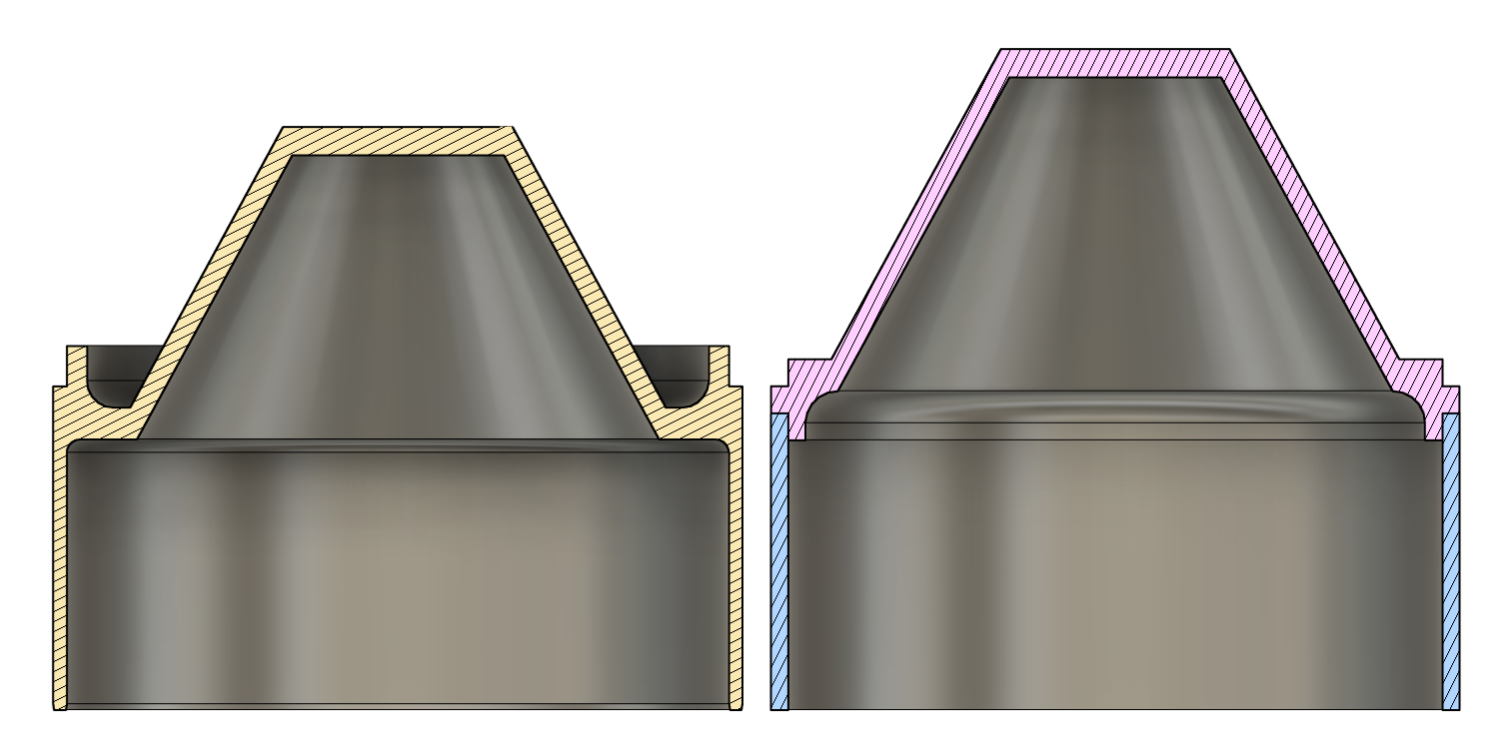

  • See picture gallery for fit-up details with non tabbed regular spacers and old style skirted VSR’s
• Stepped base provides a better seal with modular spacers.

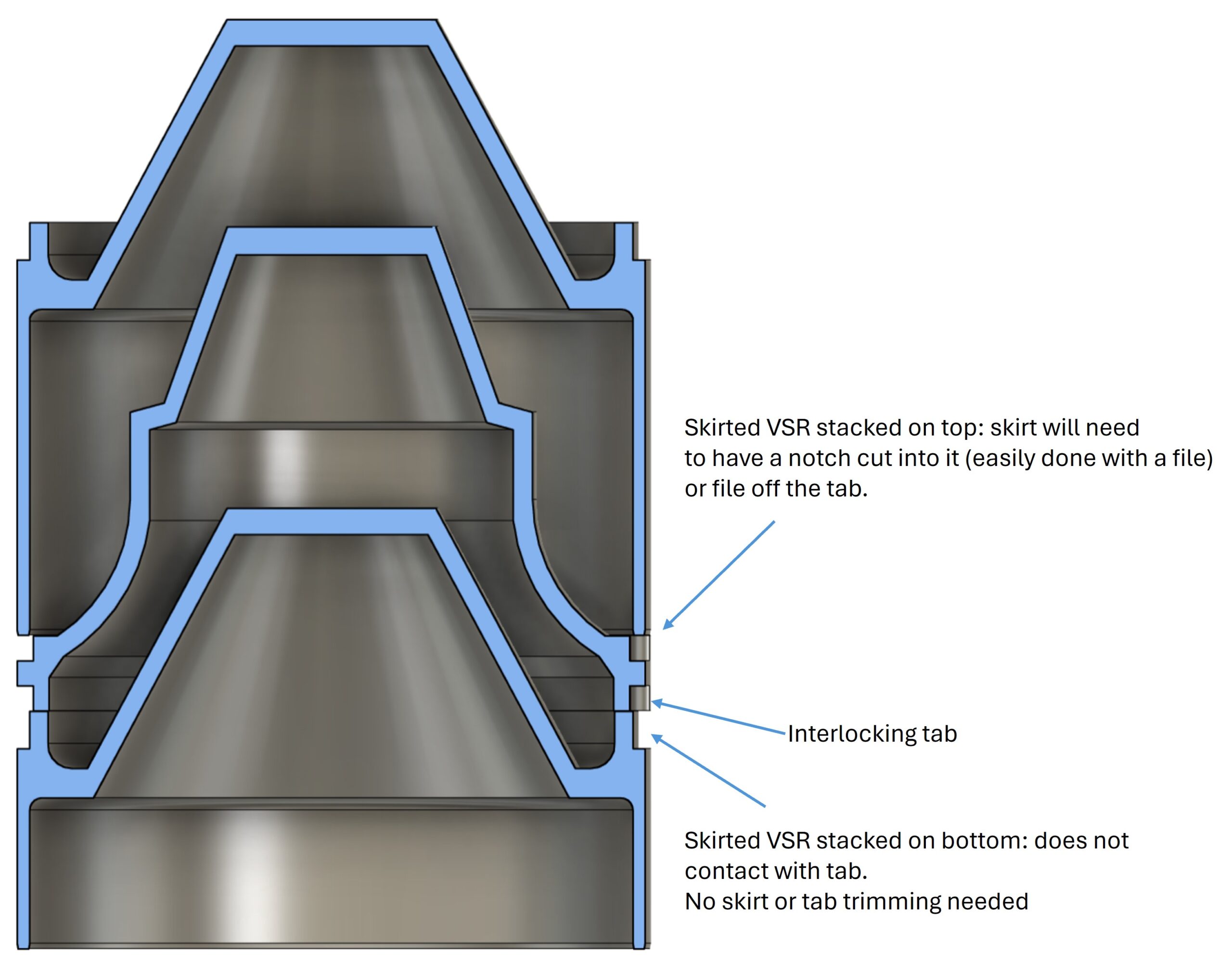

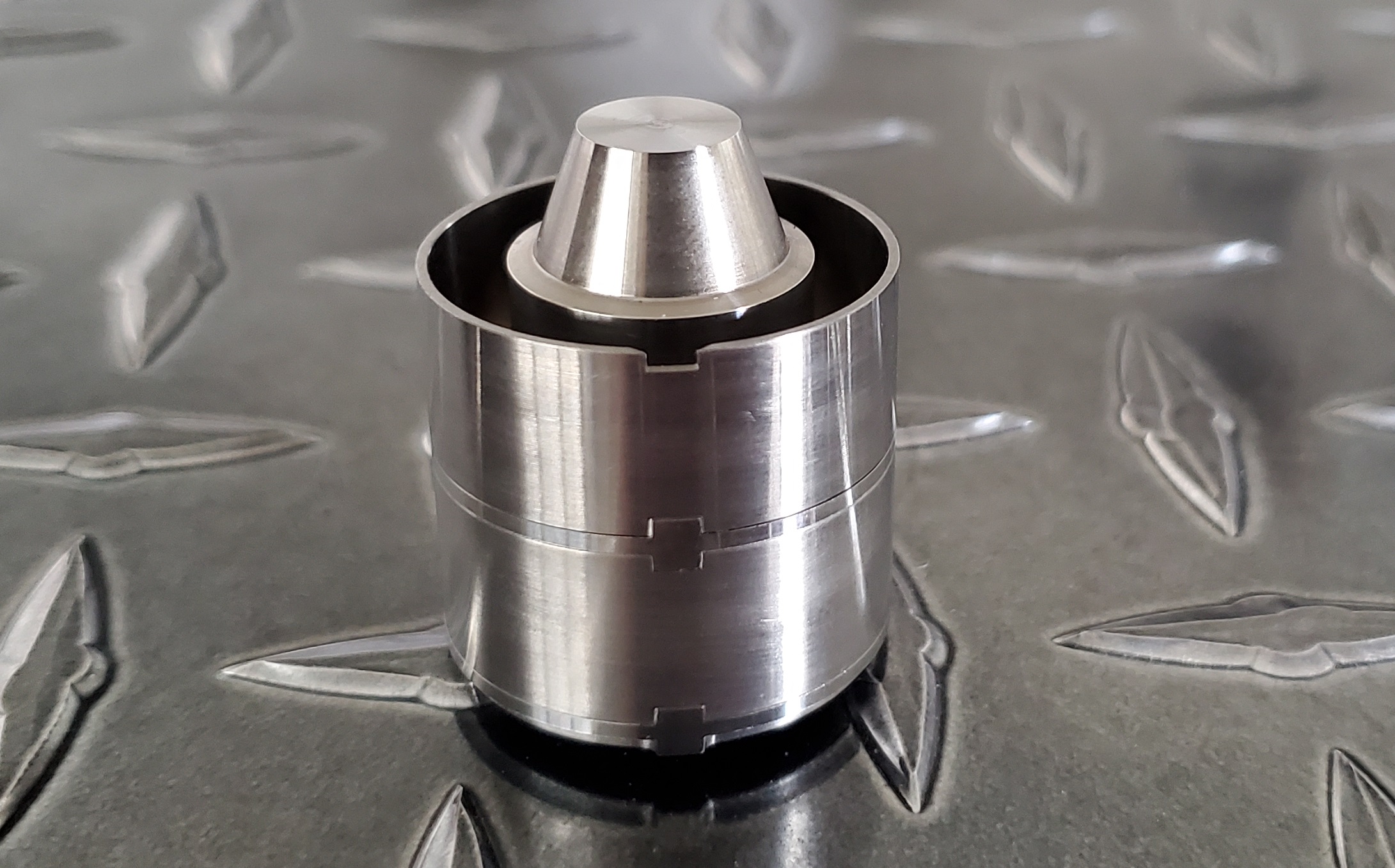

• Multiple VSR’s Can be stacked for added valve stem stability

→Need to make the skirt length a bit shorter? Apply even pressure and rub it in a figure 8 pattern on sandpaper placed over a flat surface.

Weights:

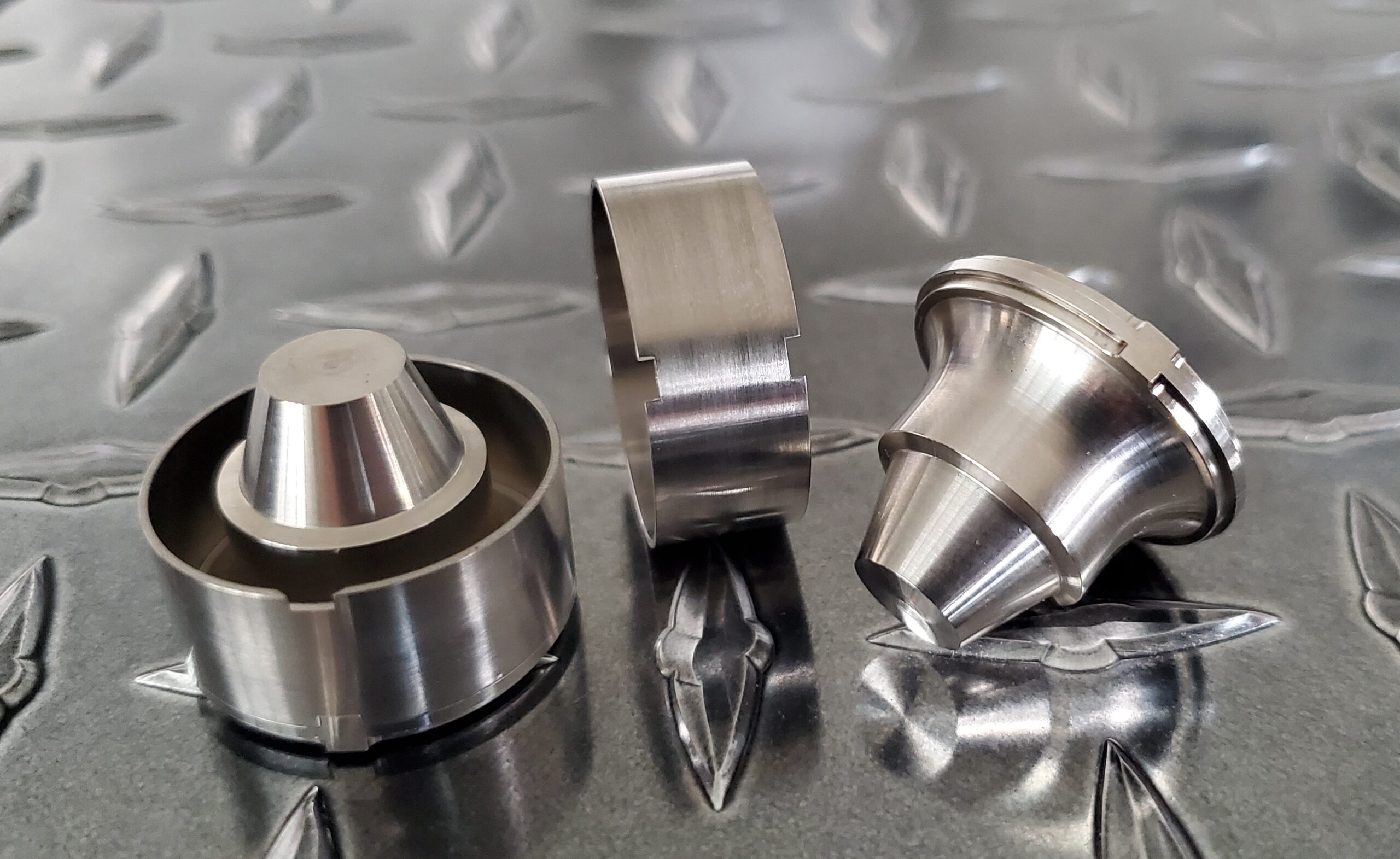

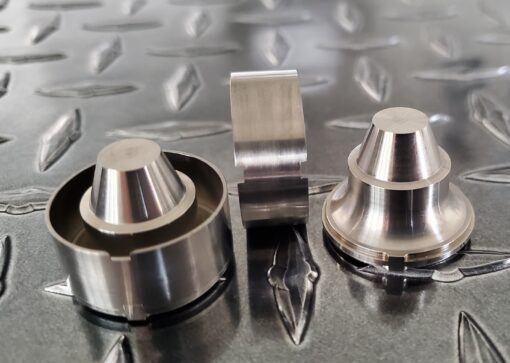

1.025″ valve spring retainers (VSR) notched spacers

• Grade 9 CWSR titanium
  • weight:
    • 0.410″ = 0.083 oz
    • 0.560″ = 0.112 oz
    • 0.660″ = 0.134 oz
• Precision machined to give valves a better sealing surface.
• Modular skirt / spacer design gives you more build options, mix and match any material with any style of valve
  • Notched modular spacers are available in many sizes to fit your needs.

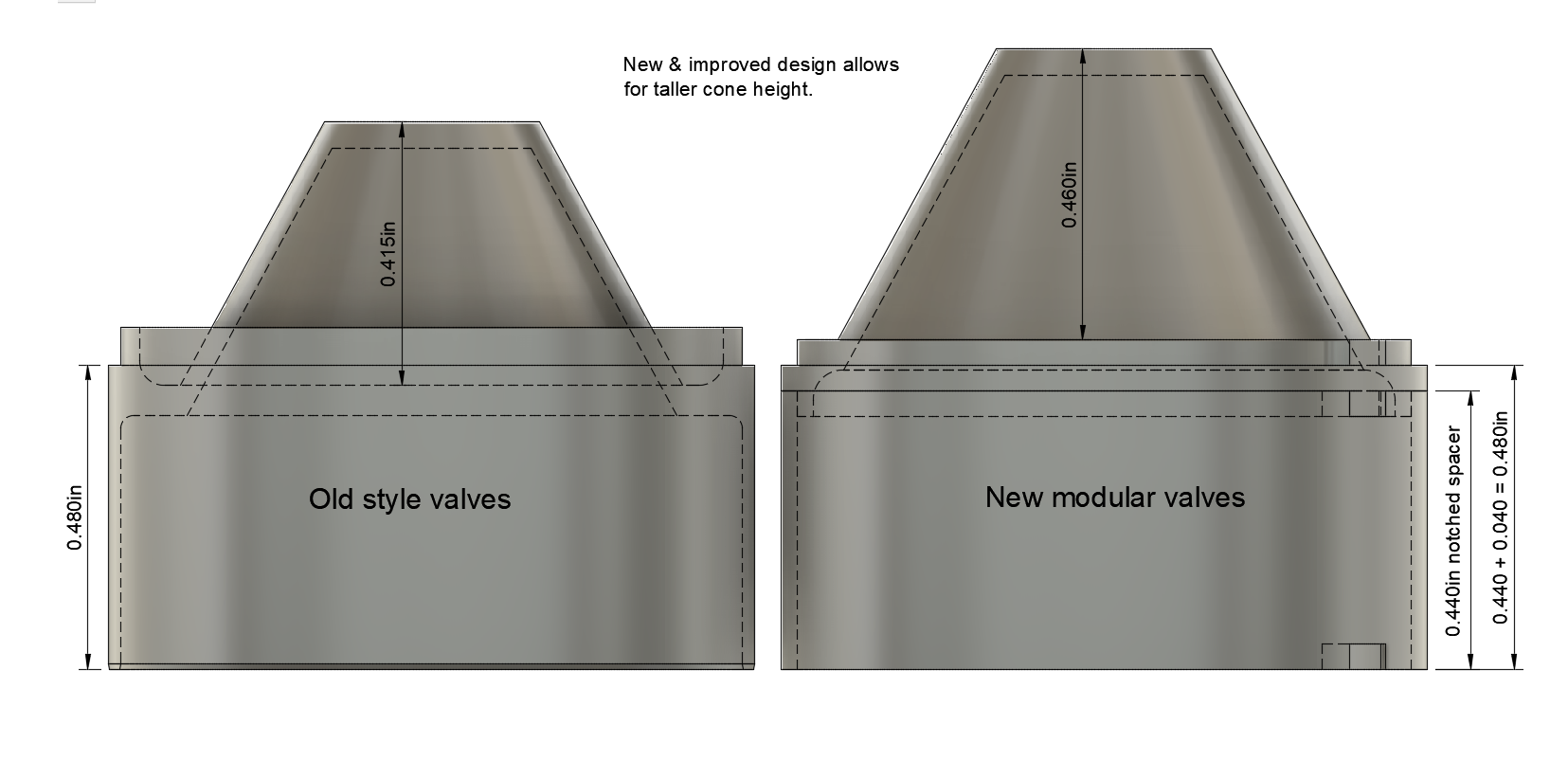

  • See picture gallery for fit-up details with non notched regular spacers and old style non tabbed skirted VSR’s
• Multiple VSR’s Can be stacked for added valve stem stability

→Need help with configuring your VSR stack length? VSR Stack Configurator
