1.025″ Threaded Adapters

Threaded adapters for 1.025″ ID Suspension reservoir pressure tubes

⚠️ M27x1 threaded adapters are for the original tubes
M26x1 threads are for the new Gen 2.0 tubes (adapter only, caps remain M27x1 threads for all tubes)

• Left hand Male thread
• Female threads available in most common reservoir pressure hose fitting sizes

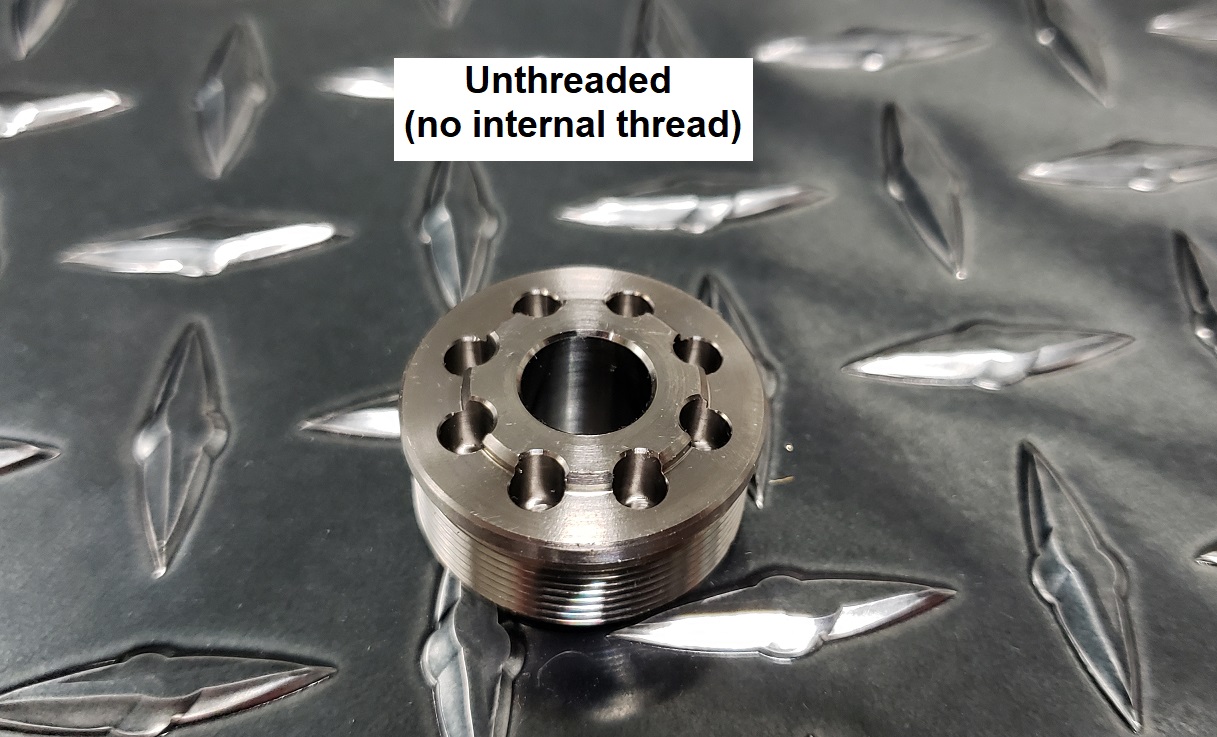

• Unthreaded adapters available for putting in your own threads or compression fittings.
• ALWAYS MAKE SURE THREADS ARE CLEAN before assembly!
• Always tighten adapter first, then seal cap
  • Using Rocksett adhesive on the threads is highly recommended. (Substitute with Threadlock at your own risk, I cant say how much to use so you could still break the threads loose after it has set).

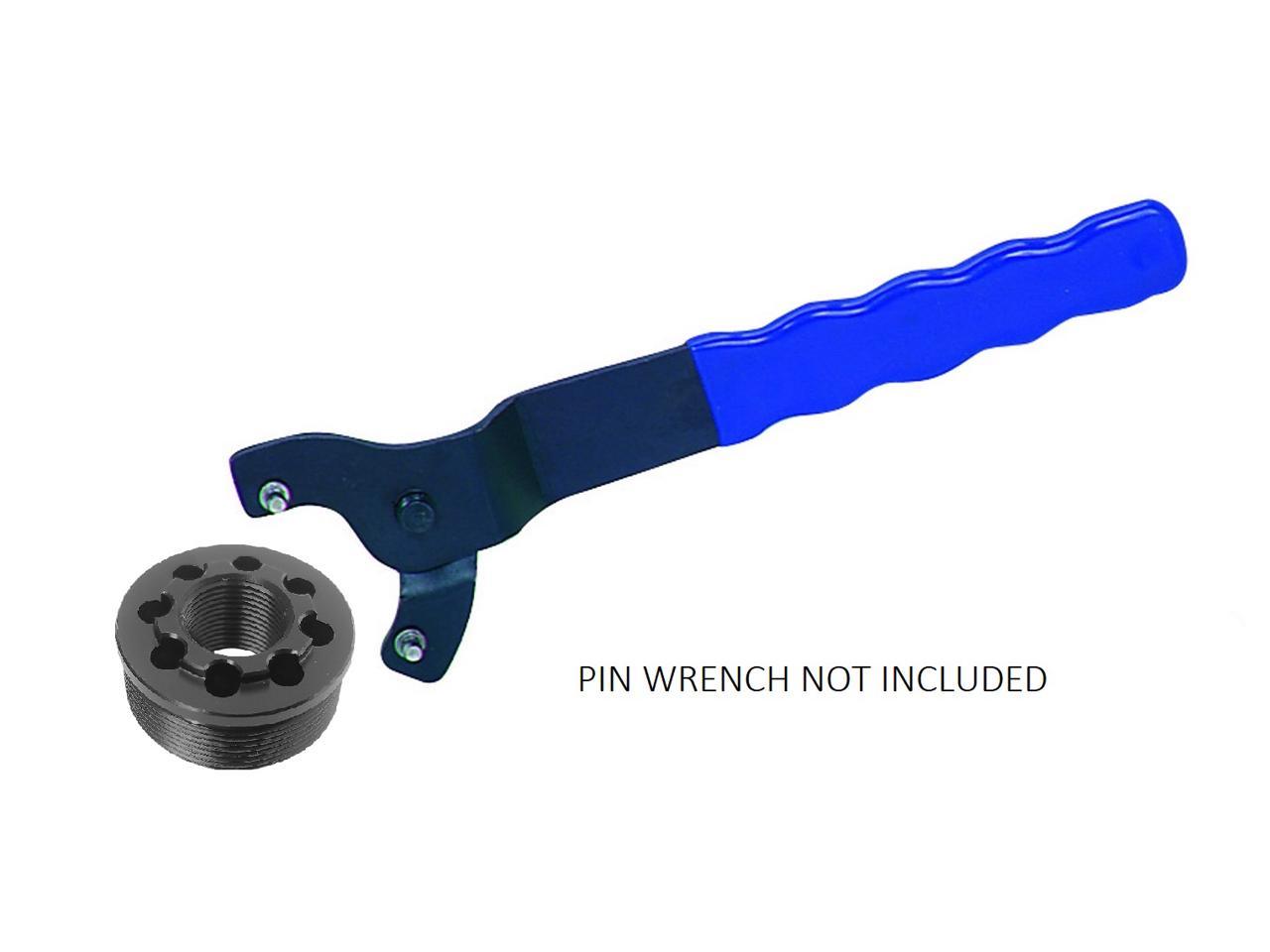

• 4mm holes for use with a universal grinder pin wrench (5$ at harbor freight, Amazon/ Ebay has a bunch, make sure it has 4mm pins)

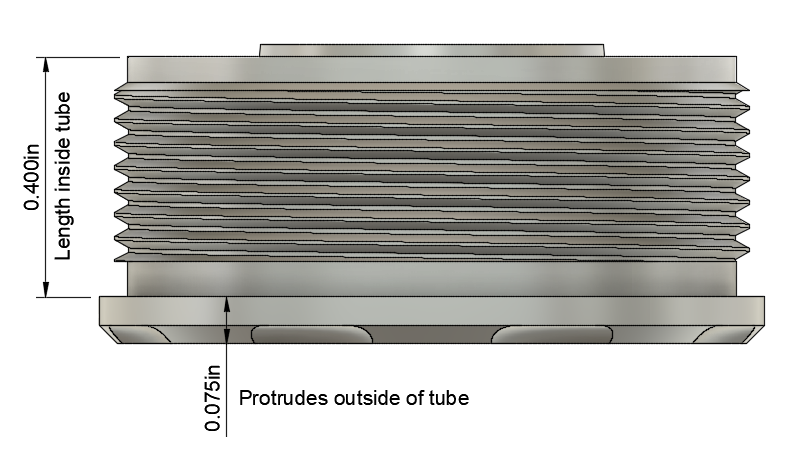

• Extends 0.400″ into tube
• Adds 0.0750″ to overall length (protrudes outside of tube)
• 7075 Aluminum w/ type III anodized black  Weight: 0.4oz
• Grade 5 Titanium (raw/ uncoated)  Weight: 0.49oz
• 304 Stainless steel (raw/ uncoated)  Weight: 0.88oz

Why Left hand threads? It eliminates the issue of adapters unthreading from the tube when removing/ unthreading accessories from the adapter. The left hand threads make it so that every time it is unthreaded from the accessory- the adapter is tightened into the tube. Unlike others with right hand treads where the adapter-tube joint breaks loose when removing.
⚠️ If adapter comes loose when threading in accessories, then the adapter was not torqued enough onto the tube. Increase tightening torque, and use a drop of Rocksett.
