1.025″ Spacers

Spacers can be stacked to achieve “in between” lengths that you need for your build. (Need 0.560″ spacer? Use a 0.460″ + 0.100″ = 0.560″ )

1.025″ nominal size (1.022″ actual OD)

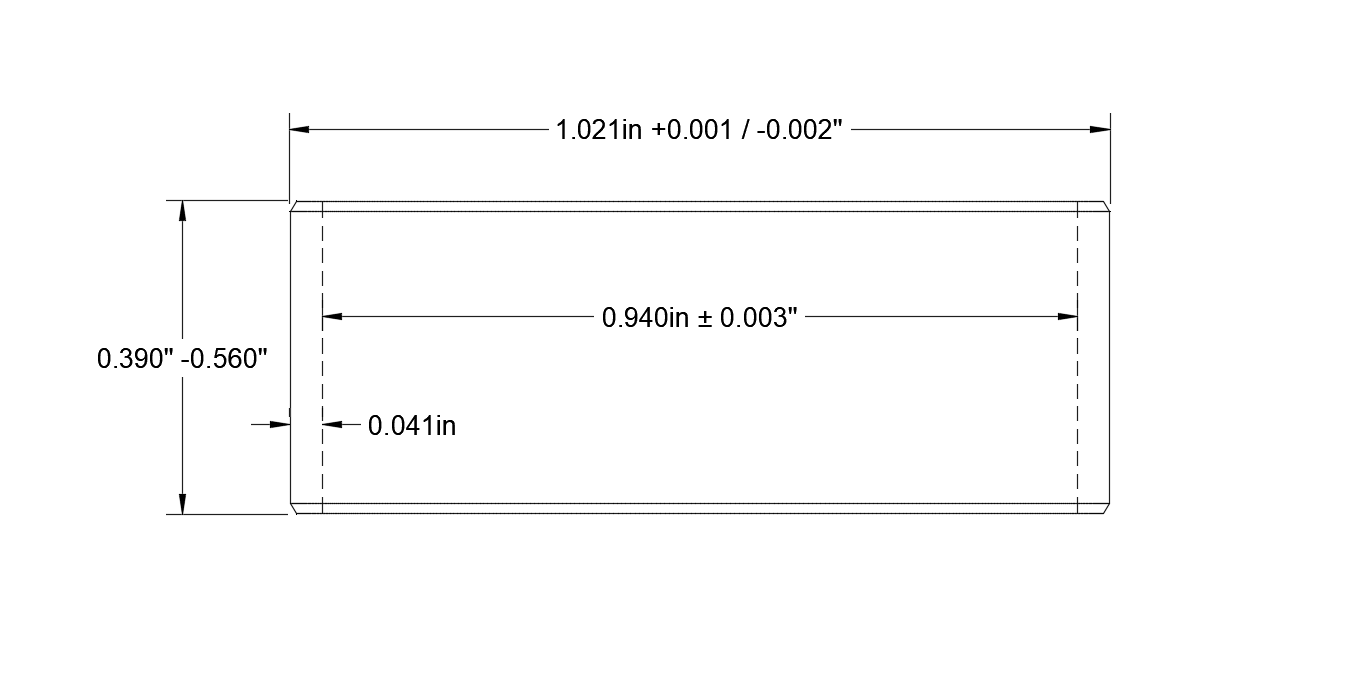

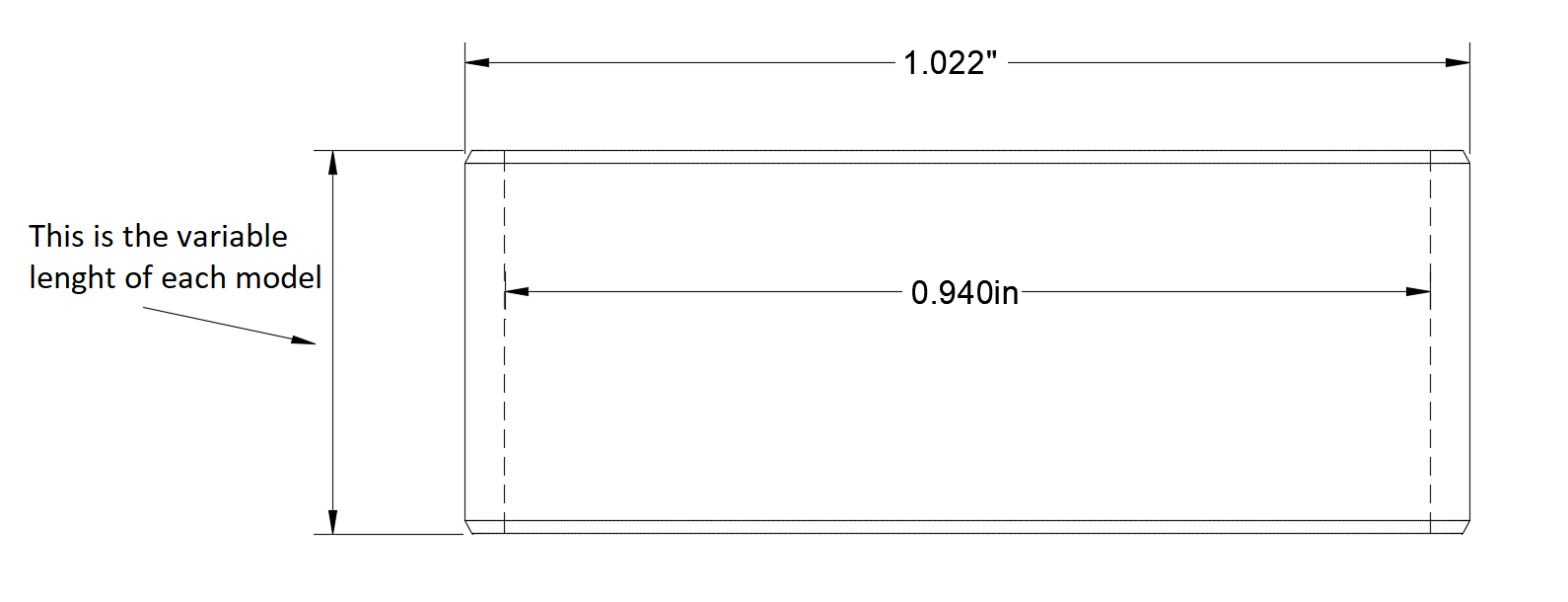

See pictures for additional dimensions

→Need to make the spacer a bit shorter? Rub it in a figure 8 pattern on sandpaper placed over a flat surface.

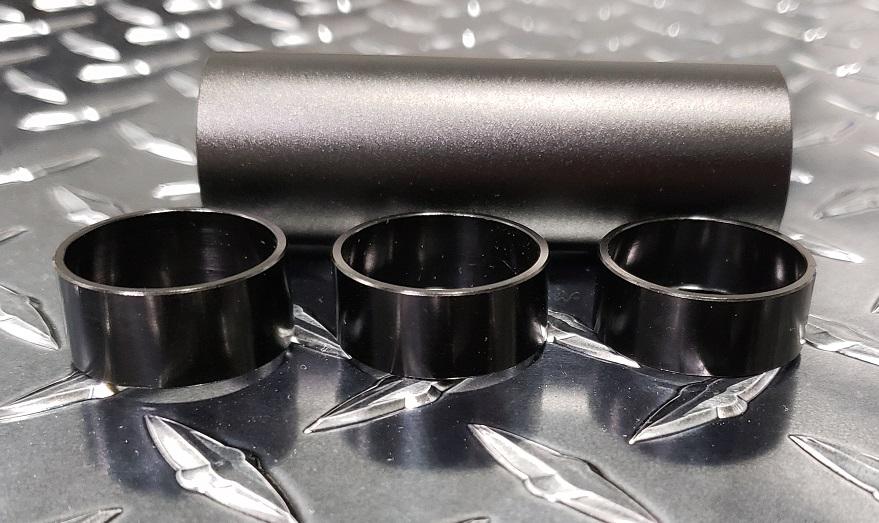

• 2024 Aluminum anodized black spacers
• 0.050″ wall thickness
  • Weight:
    • 0.390″   0.088oz
    • 0.425″   0.097oz
    • 0.460″   0.10oz
• Grade 9 Titanium spacers (raw/ uncoated)
• 0.040″ wall thickness
  • Weight:
    • 0.390″   0.12oz
    • 0.425″   0.13oz
    • 0.460″   0.14oz
