Heat Exchanger DIY Parts
$1.70 – $14.00

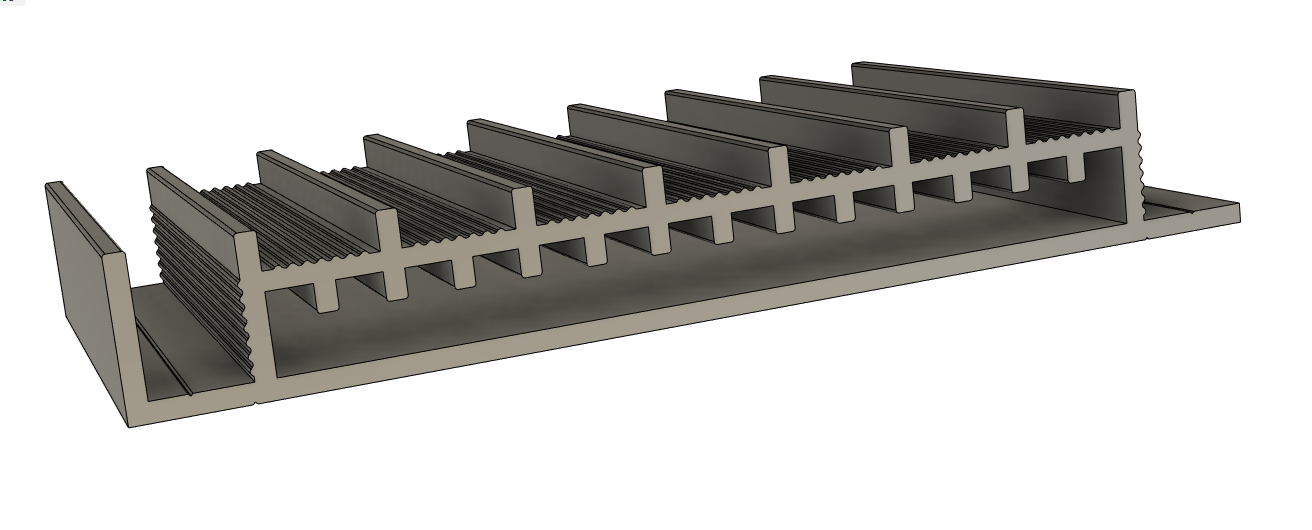

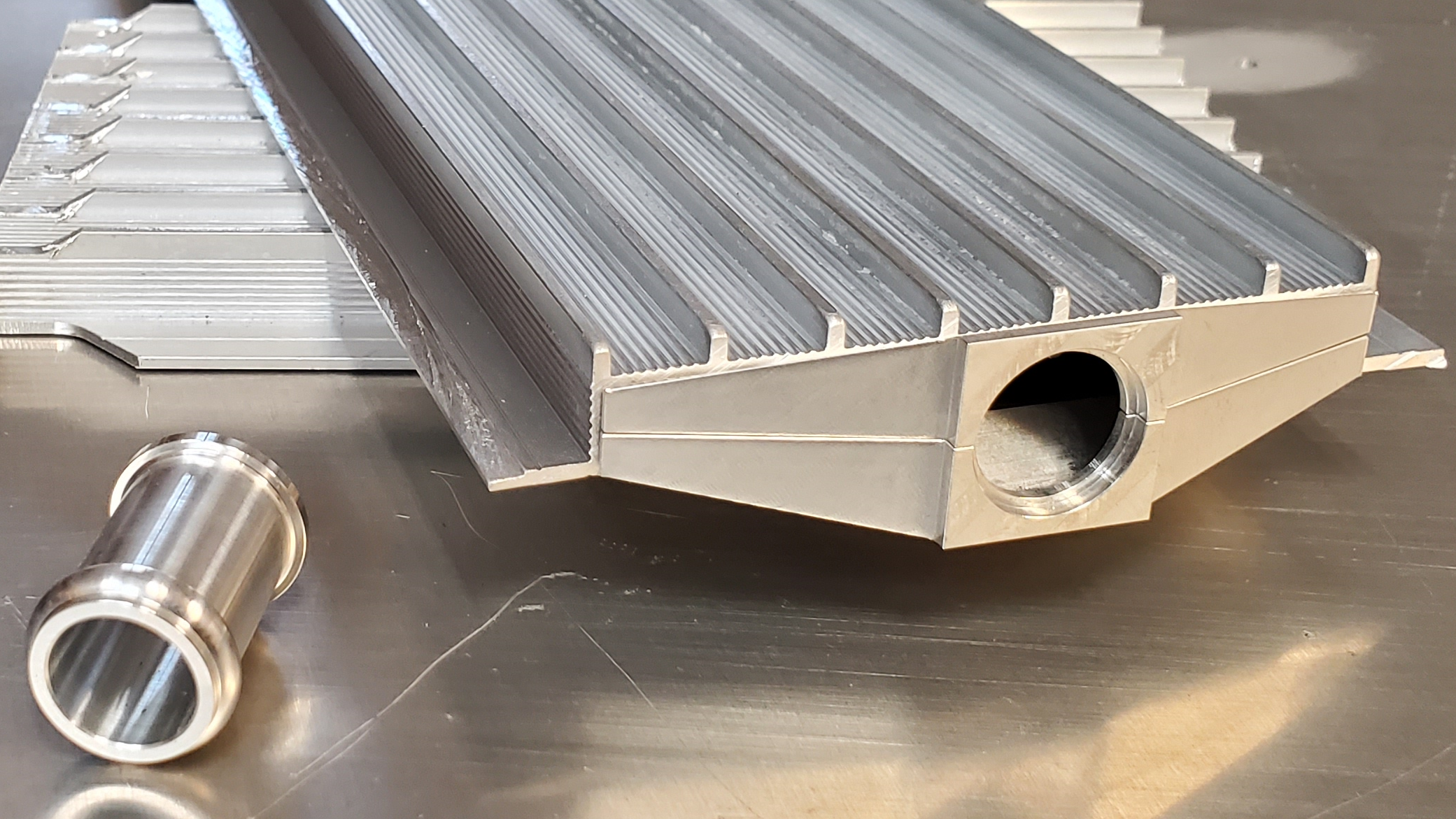

Heat Exchanger extrusion for DIY builds.
Sold by the inch so you can get the exact size you need.
(Cut length will be +0.25″ from what you order)
Allow up to 3 days for cutting.
(If you need 2 pieces each 24″ long, order 48″ BUT please leave a note in the message box during checkout and let us know to cut it into 2 pieces 24″ long. It is much easier to ship and lesser chance of getting damaged during shipping)

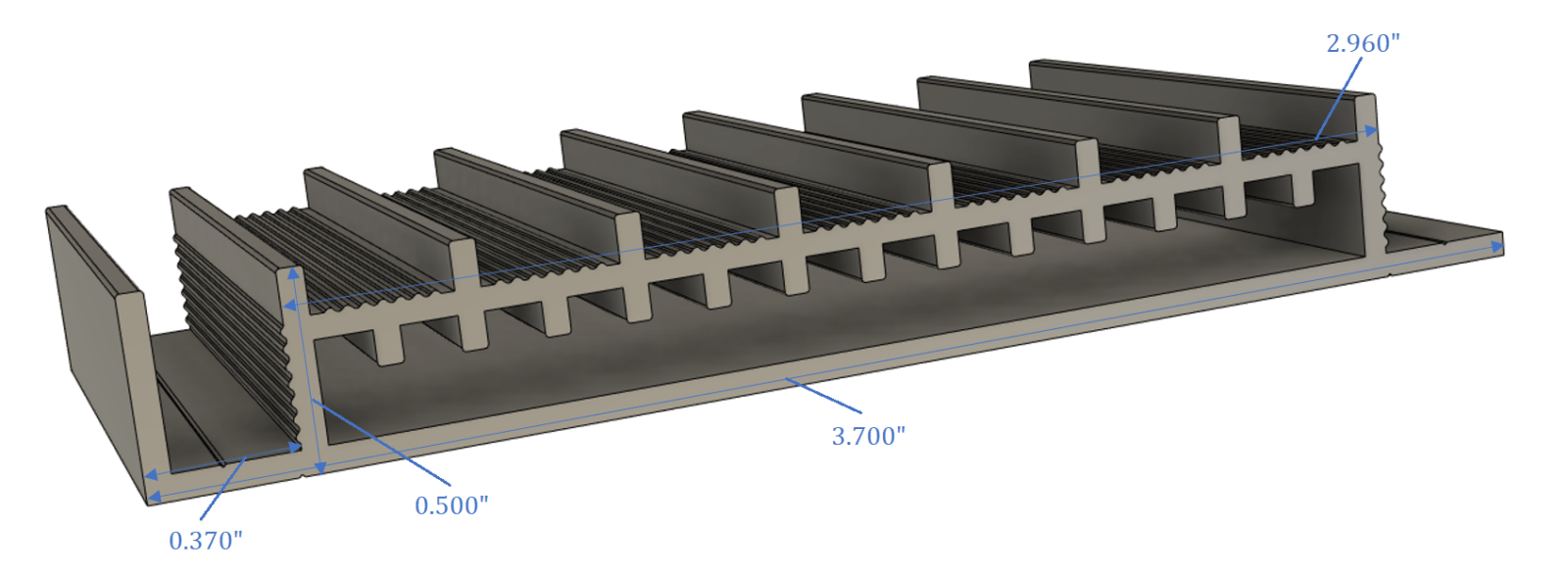

Edge to edge width: 3.700″
Cooler body width: 2.960″
Flange width: 0.370″ each side
Total height: 0.500″
Material thickness: 0.065″
Alloy: 6063 T6

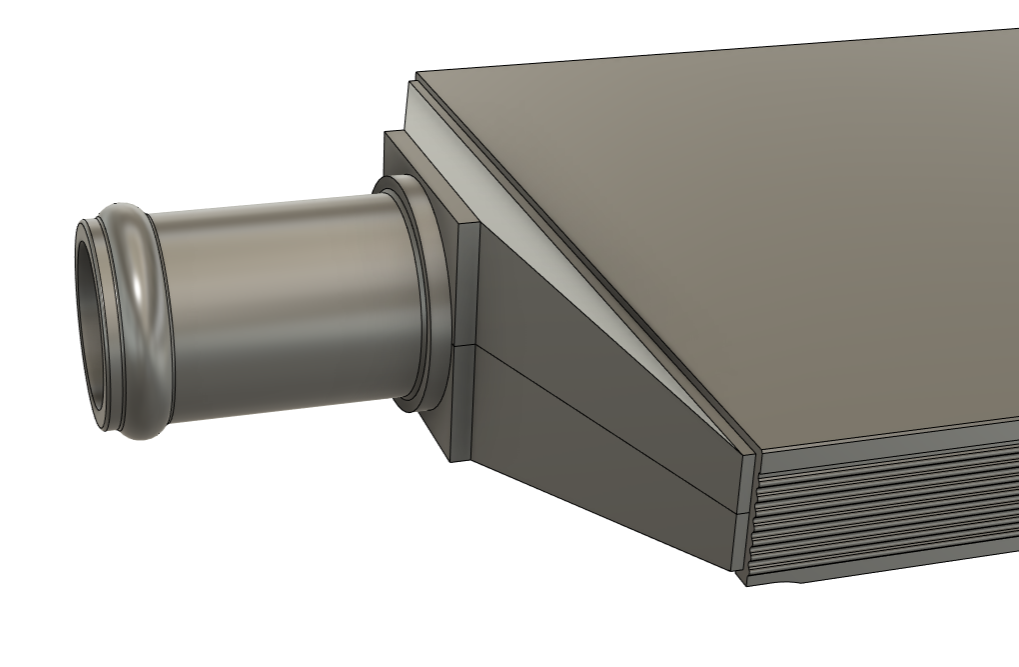

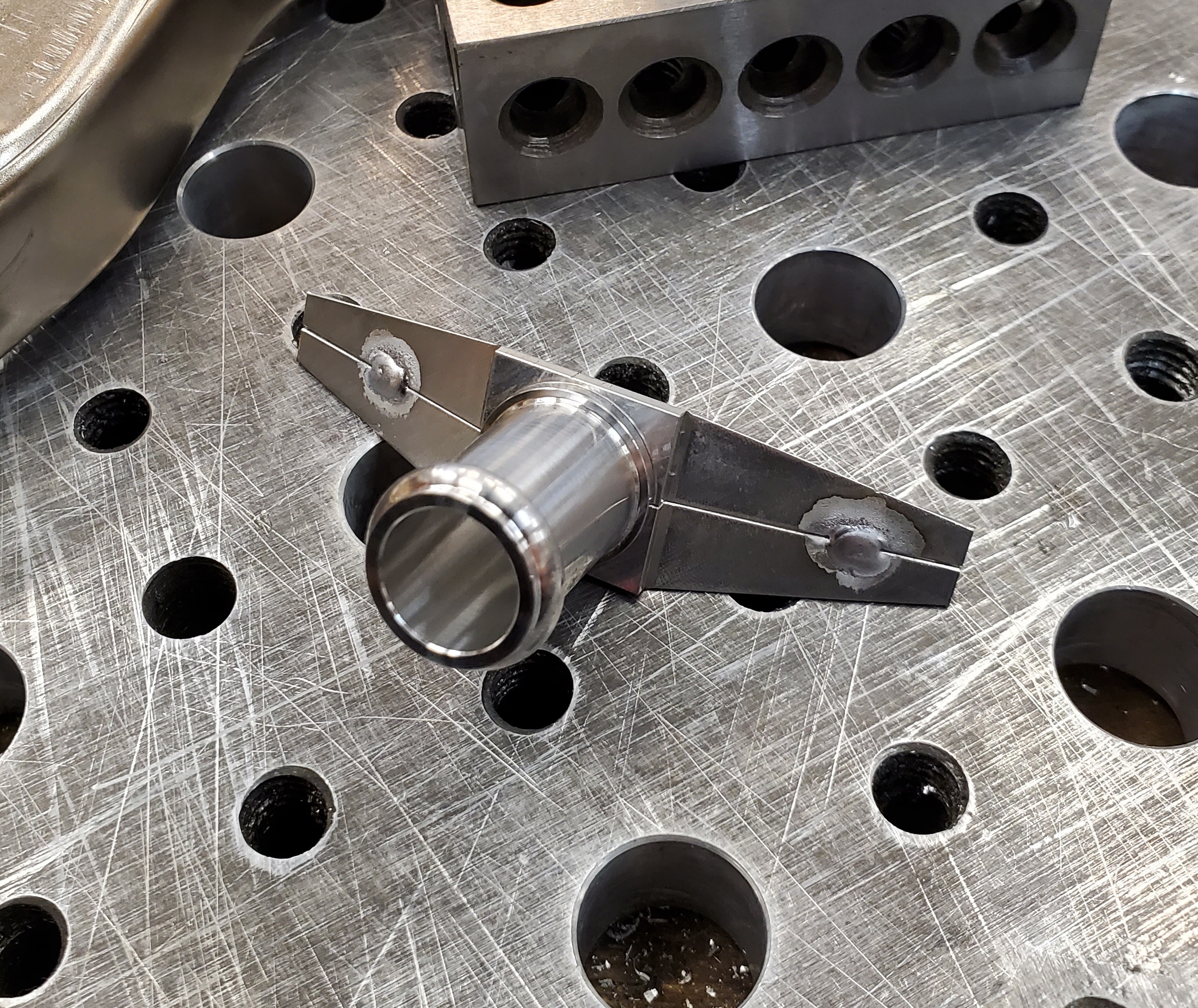

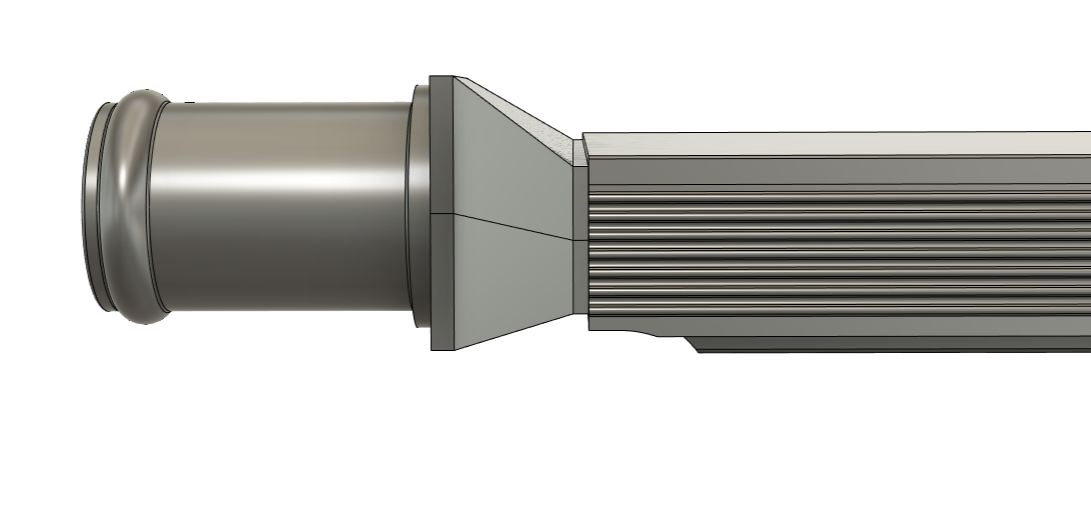

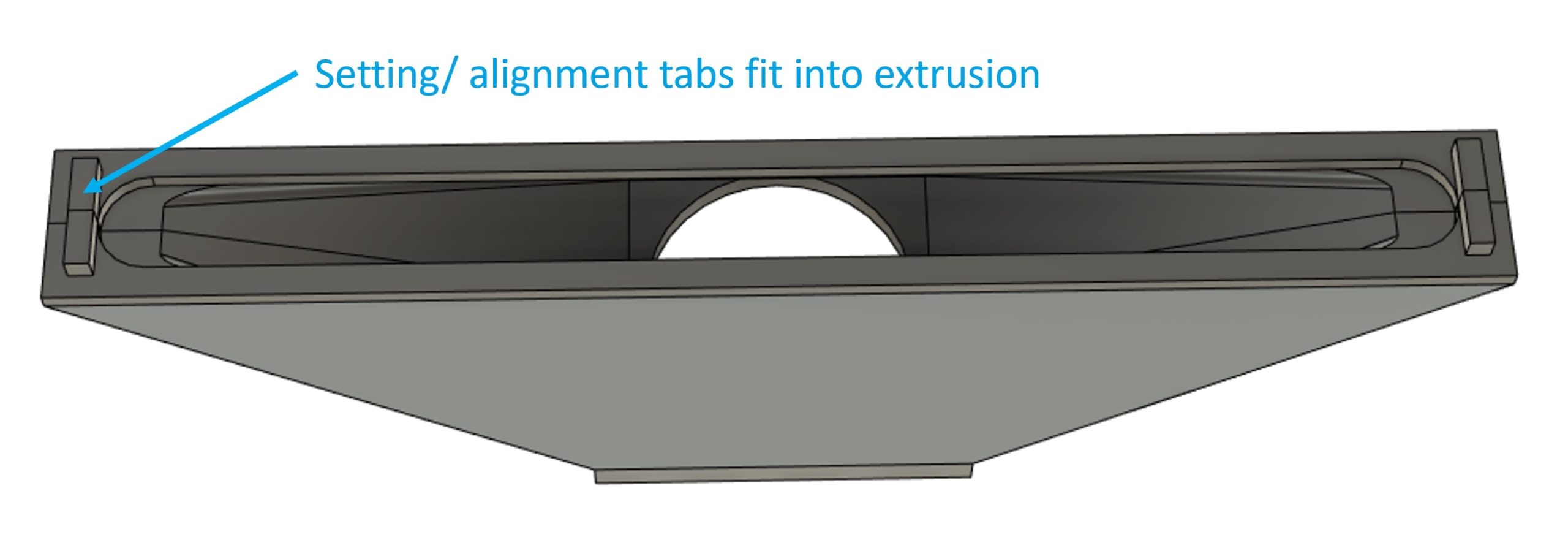

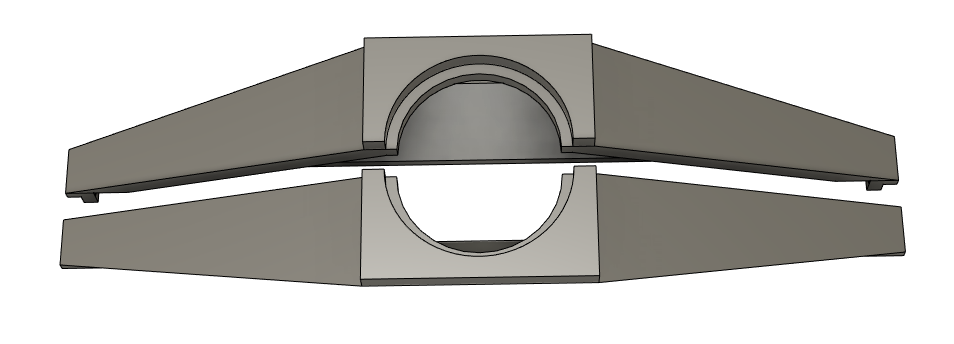

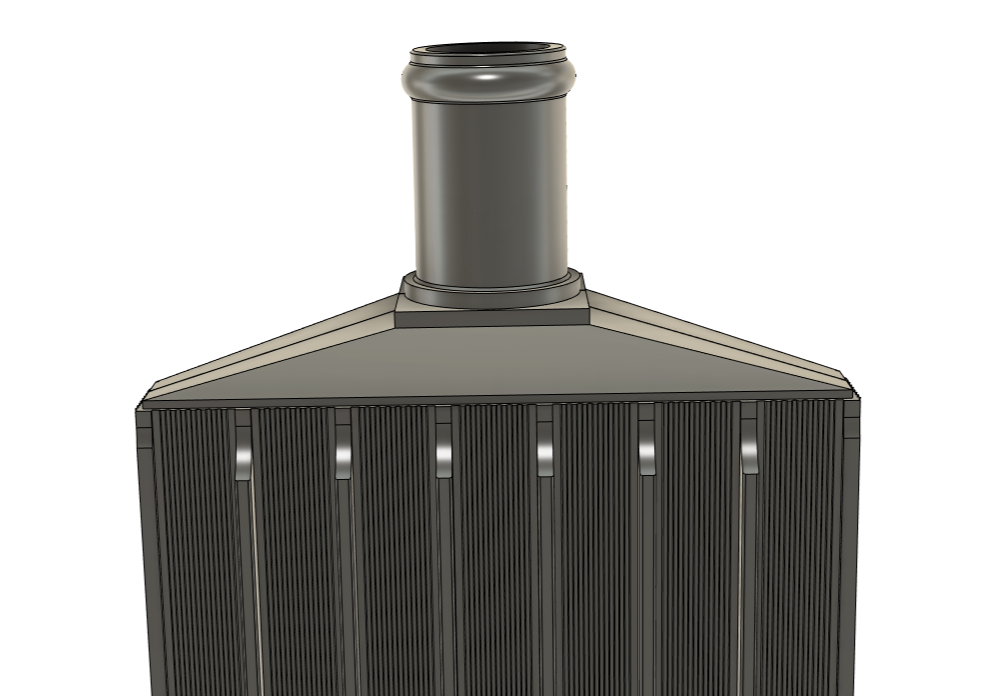

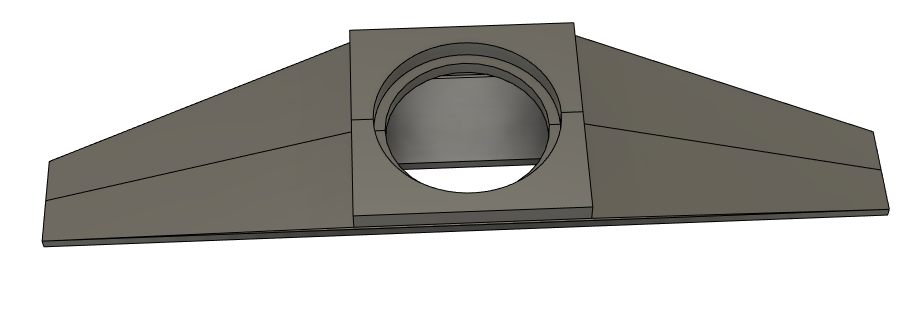

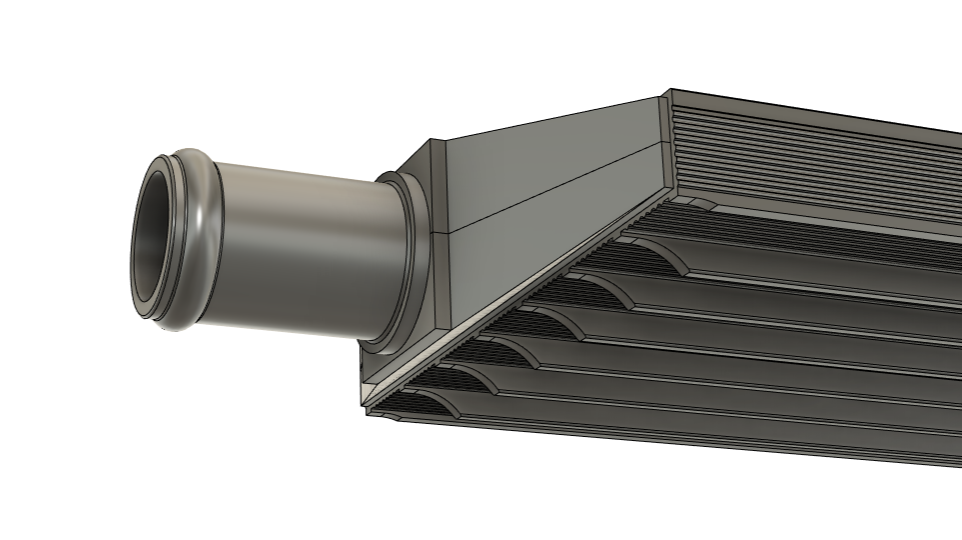

End cap hose fitting adapter is a 2 piece component that needs to be welded together. Has tabs for easy centering into the extrusion, and accepts the 5/8″ hose fitting.

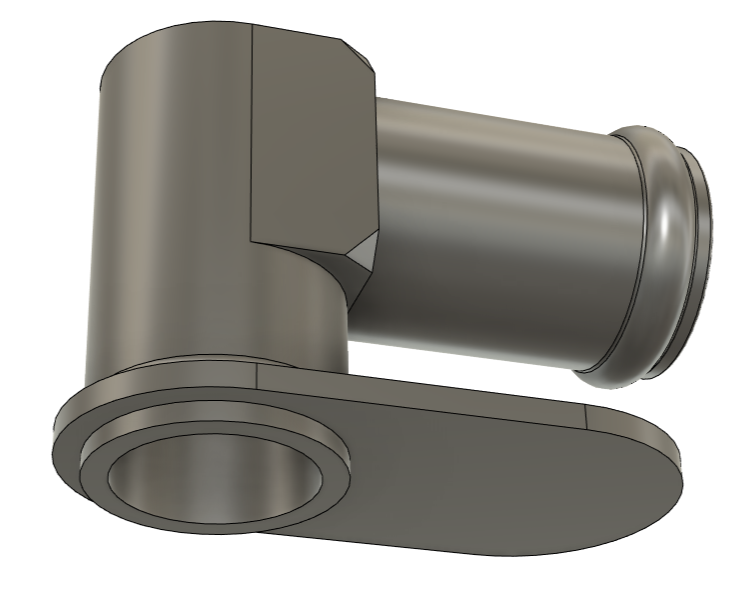

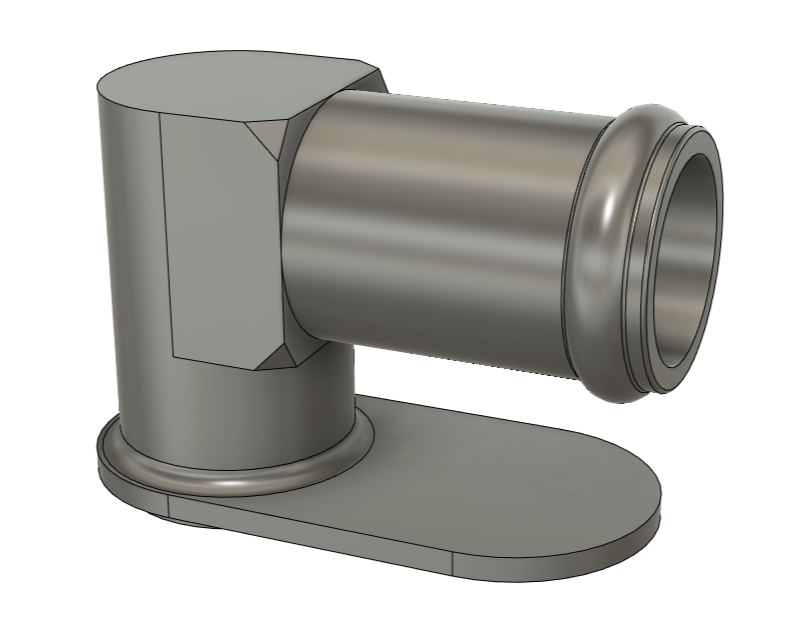

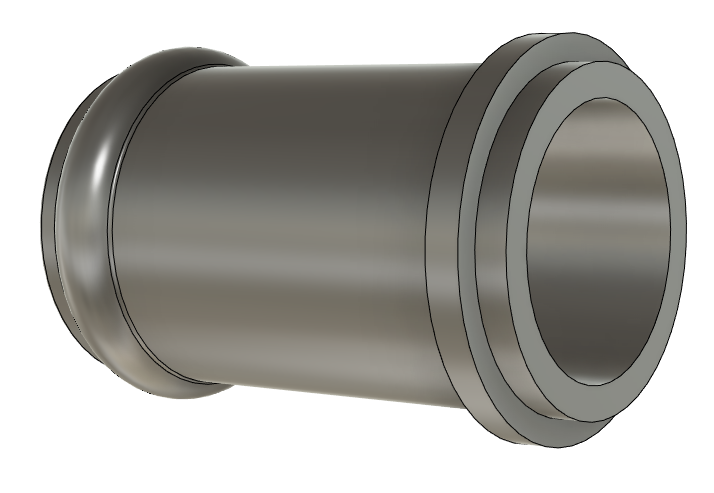

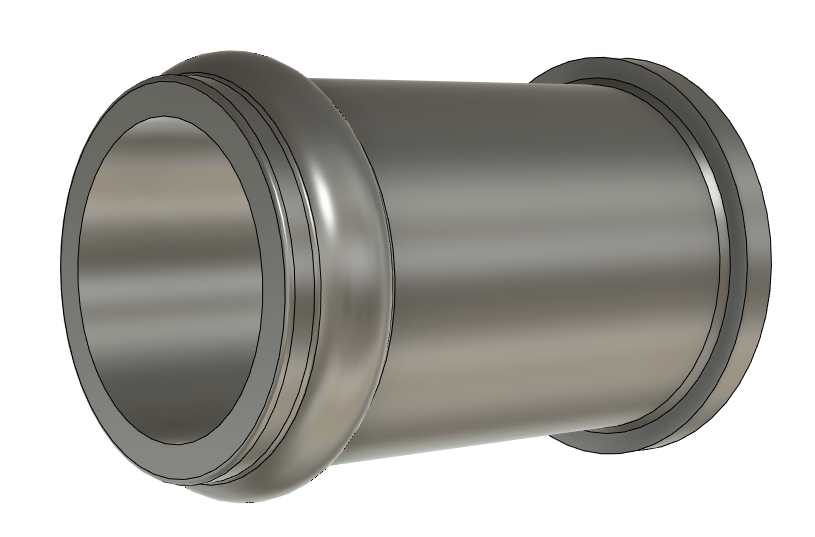

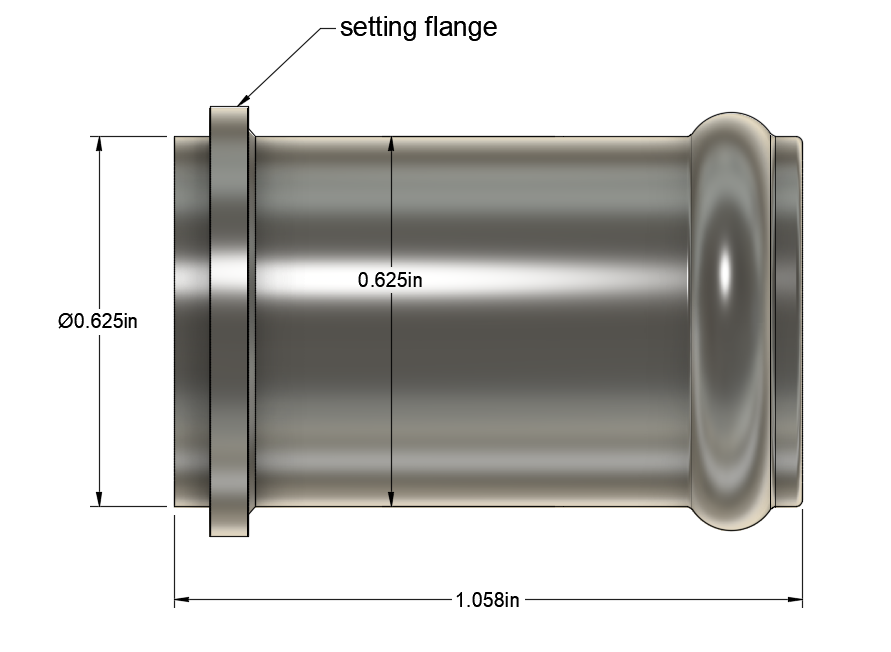

- All hose fittings are made of 6061 T6

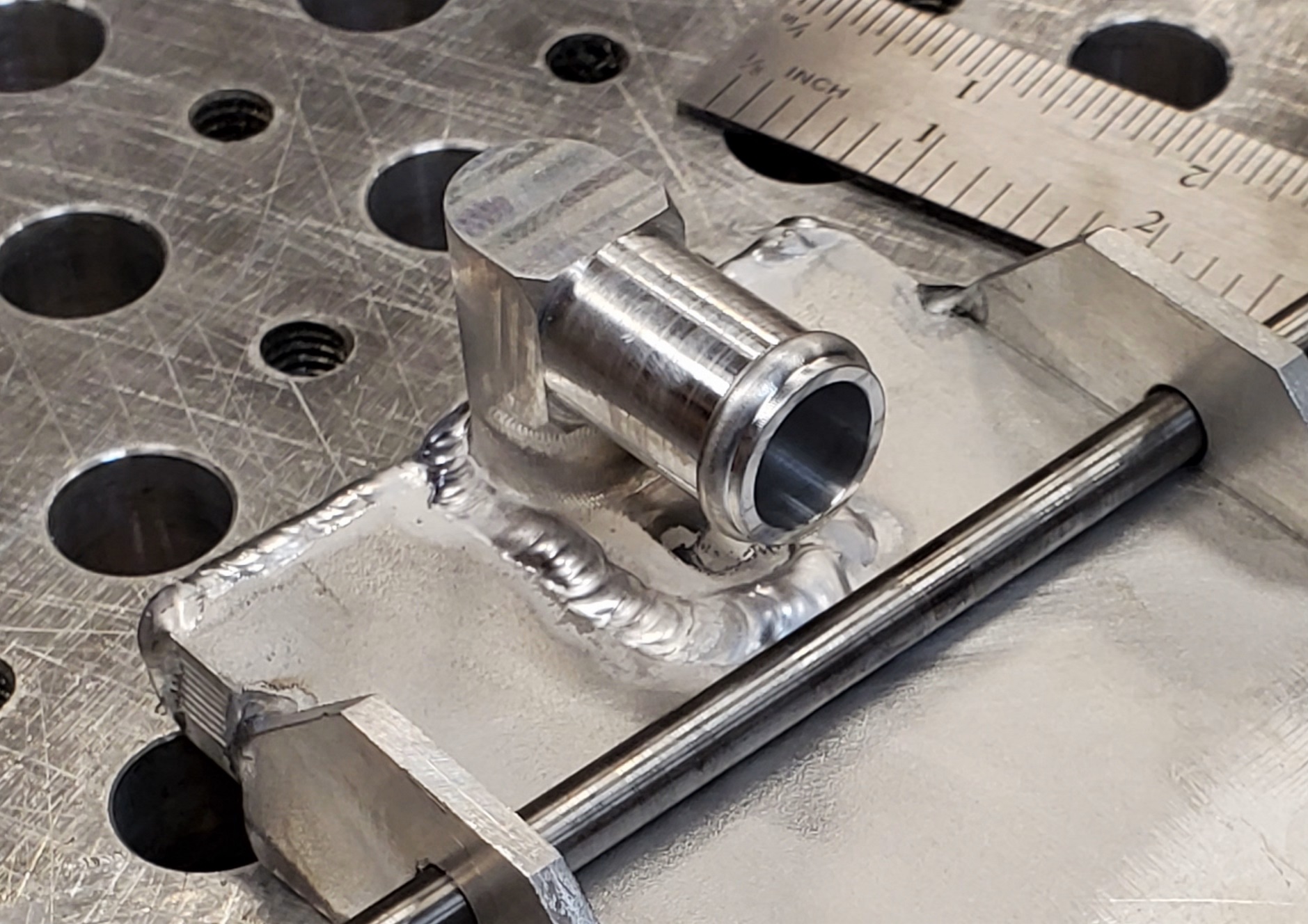

- All hose fittings are meant to be welded over a 5/8″ drilled hole

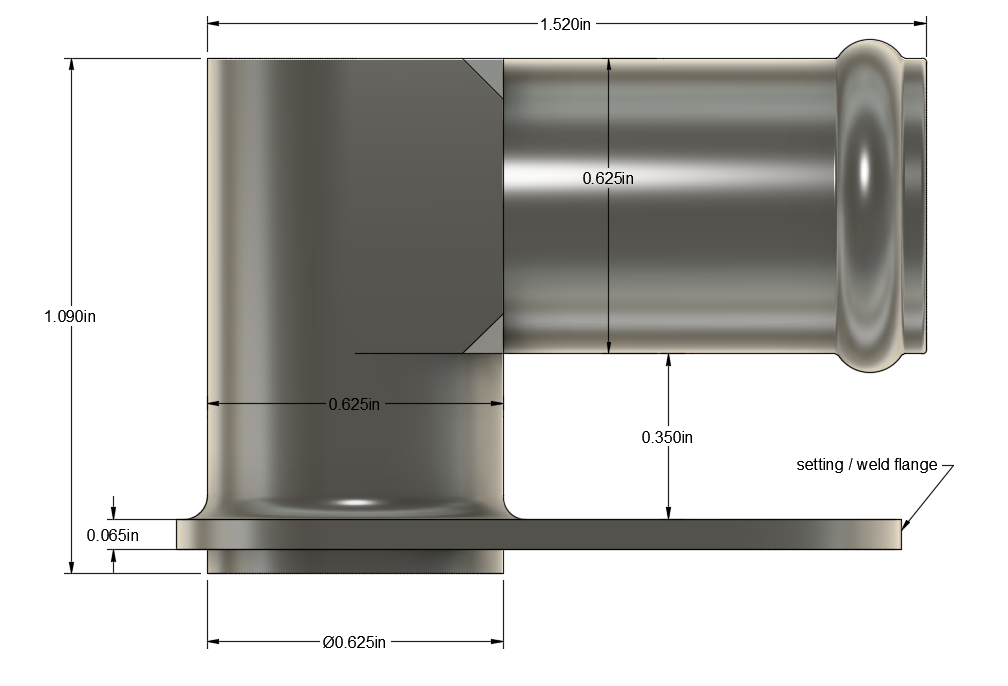

- Fittings have a flange for easy setting
Have questions? Contact Us
| Weight | N/A |
|---|---|
| Component | Heat exchanger extrusion (Sold by the inch), 5/8" straight weld on hose fitting, 5/8" elbow weld on hose fitting, End cap hose fitting adapter |
