1.360″ Reservoir Tube Seal Caps

Threaded seal caps for 1.360″ ID Suspension reservoir pressure tubes

• Threads are 1 7/16-20 (1.4375-20) right hand thread

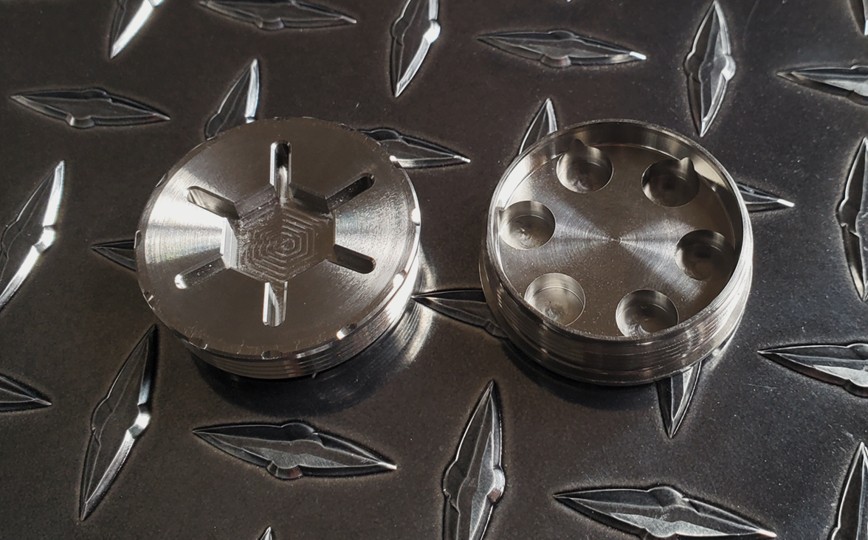

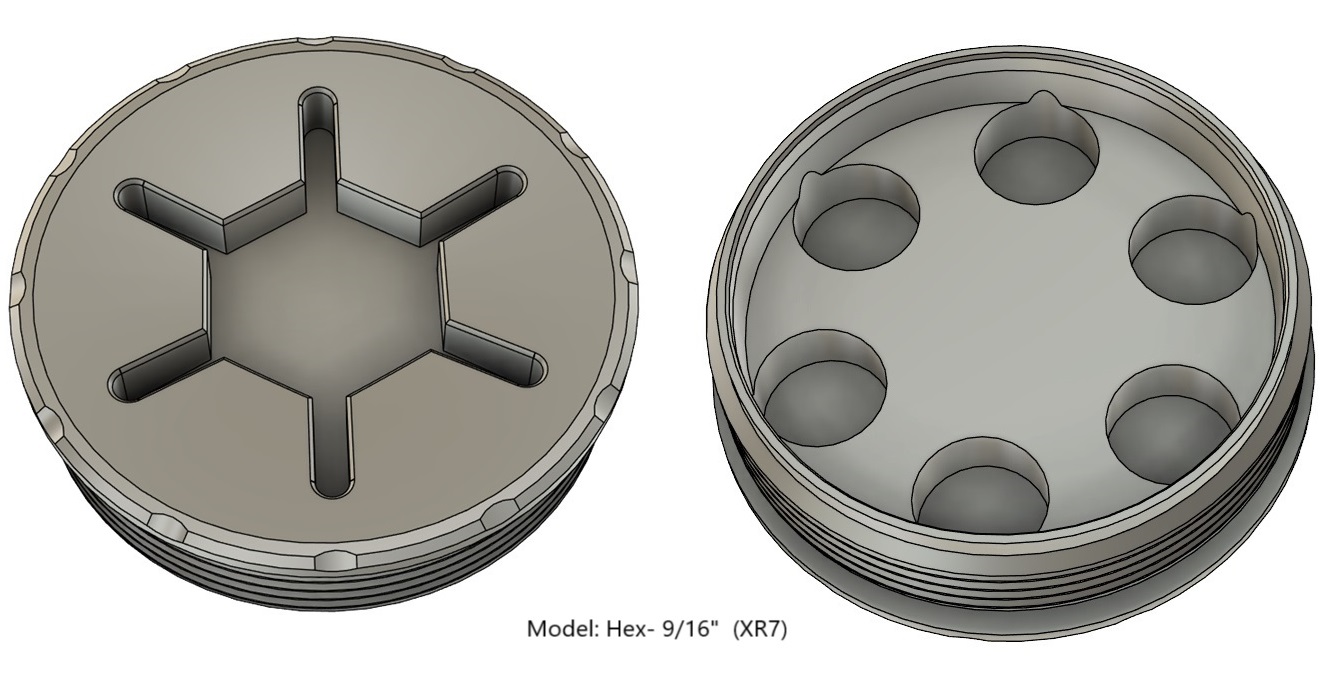

• Available in standard flanged and flangeless model for customization and easier setup
  • Flange on cap seats on the tube face

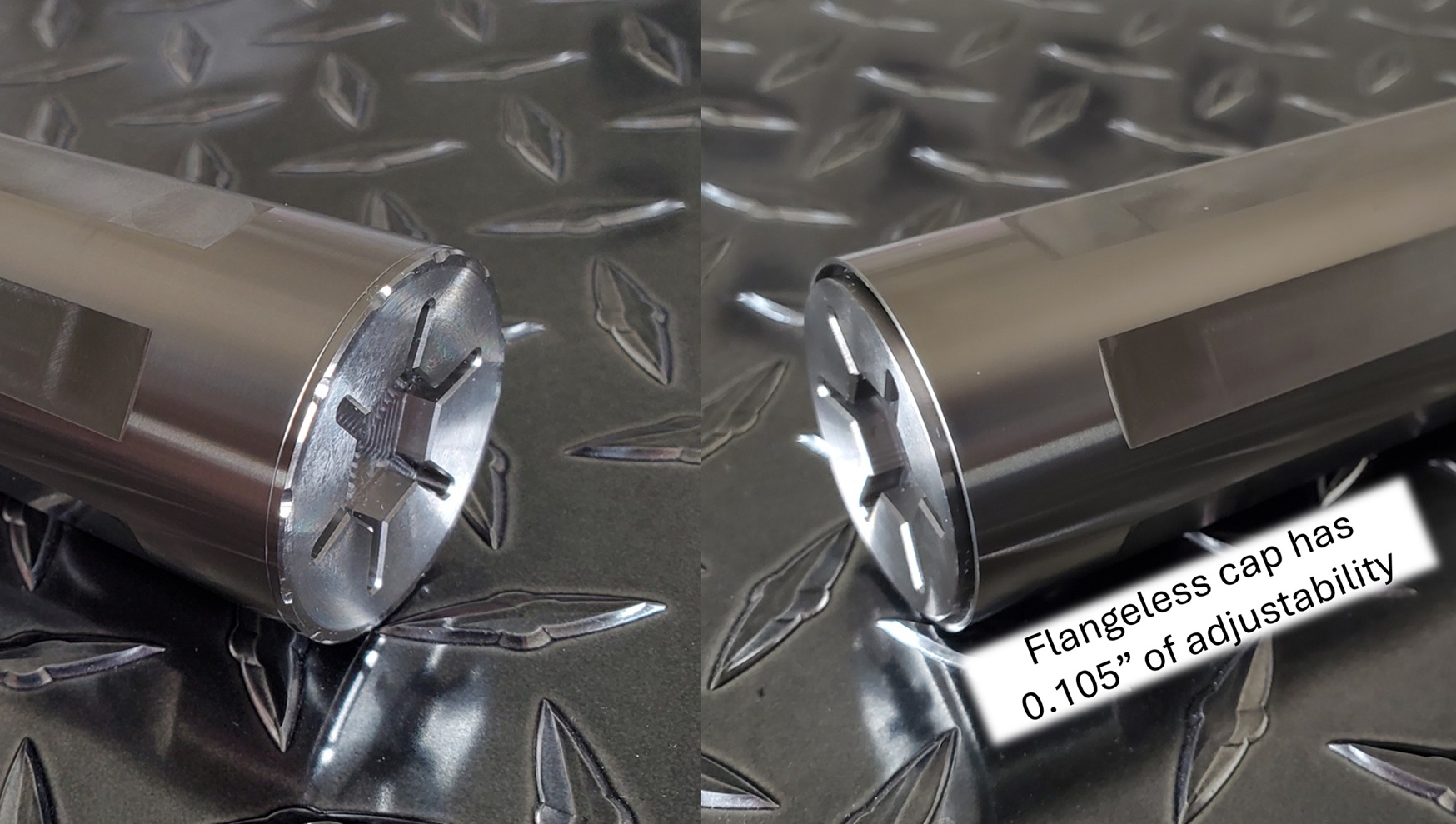

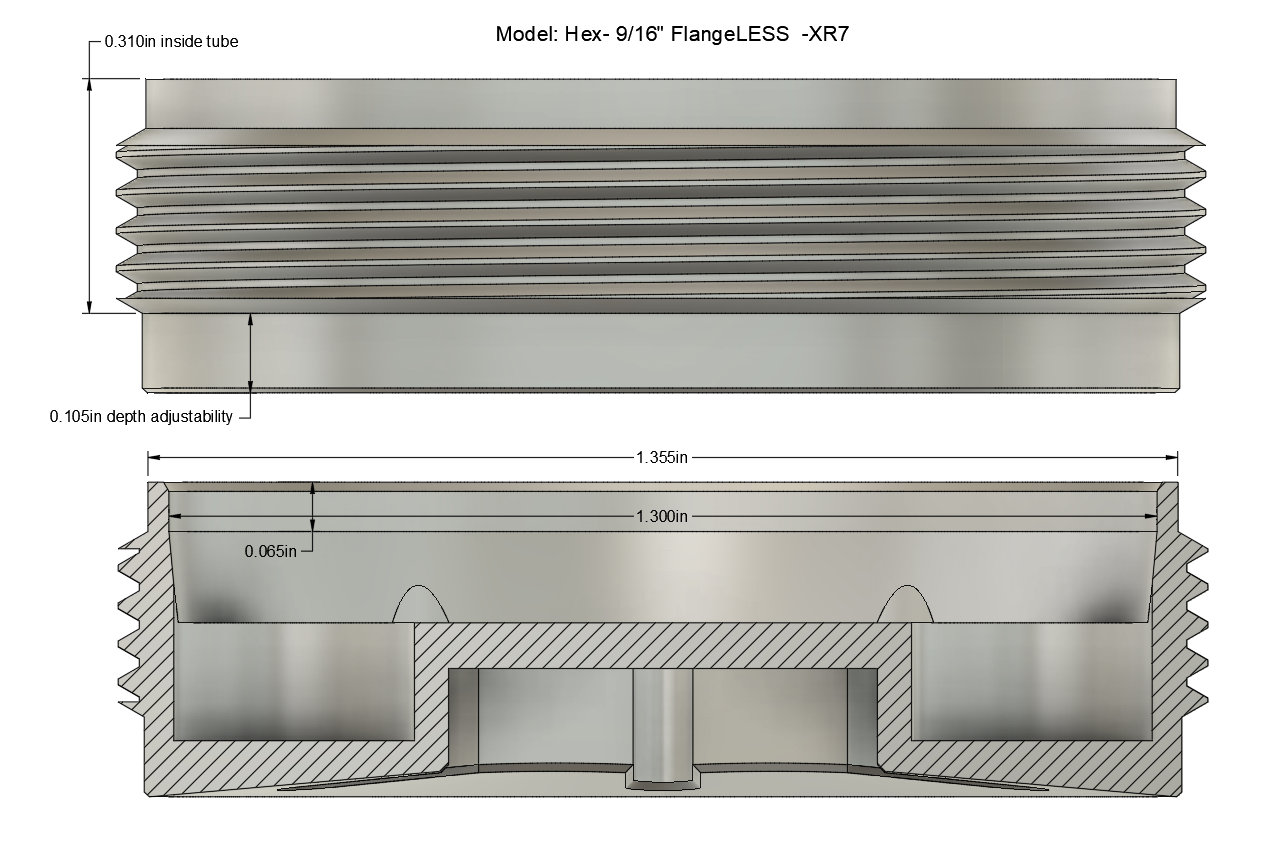

  • Flangeless cap does not have a flange and gives 0.090″ of adjustability while still giving it a clean look.

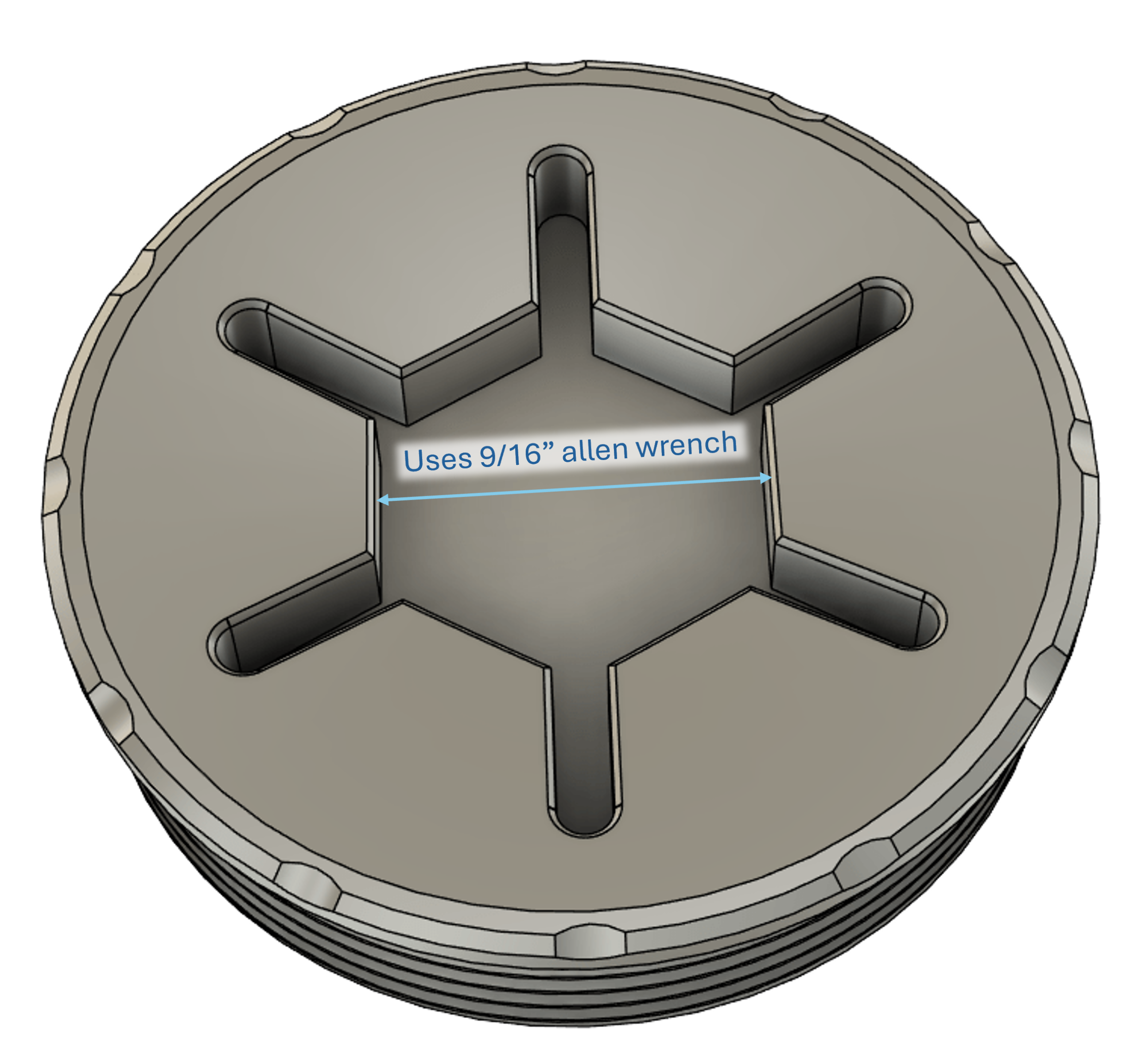

• No special tools needed for caps- uses standard readily available tools.
• ALWAYS MAKE SURE THREADS ARE CLEAN before assembly!

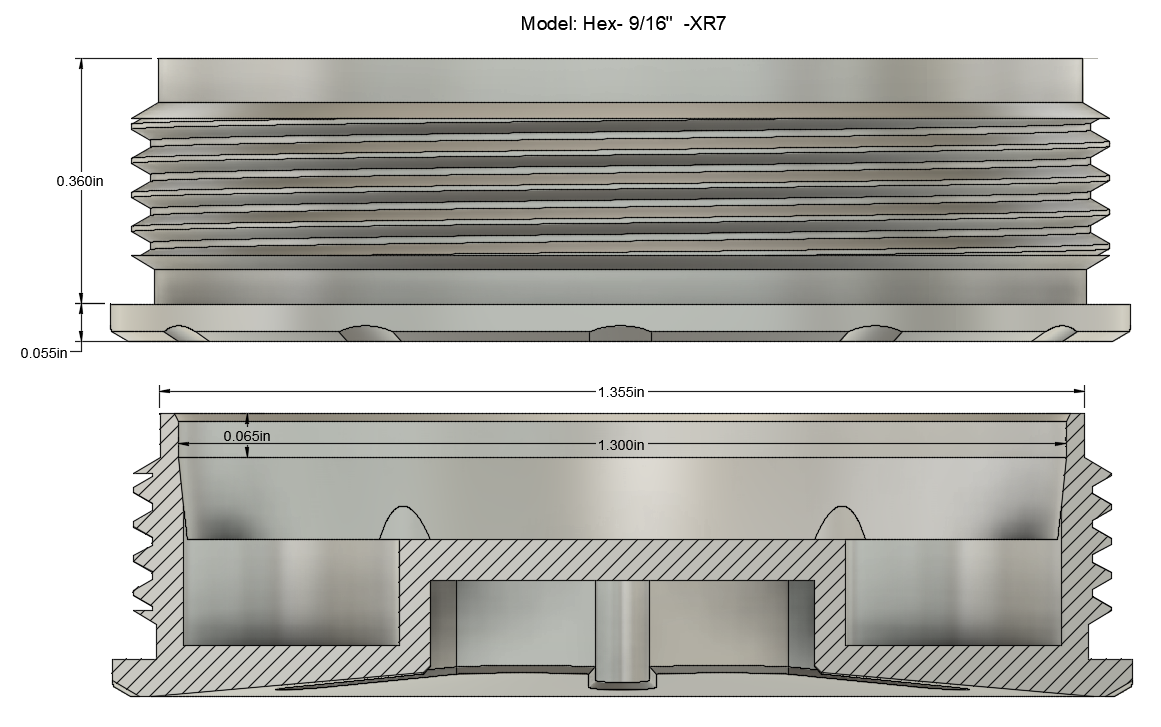

• Extends 0.360″ into tube (flanged model)
• Look at the pictures for more dimensional info

⚠️Caps do not need to be torqued tight like the adapter! Mildly snugged down with the wrench and that is good enough!

• Grade 5 Titanium (raw/ uncoated) Weights:

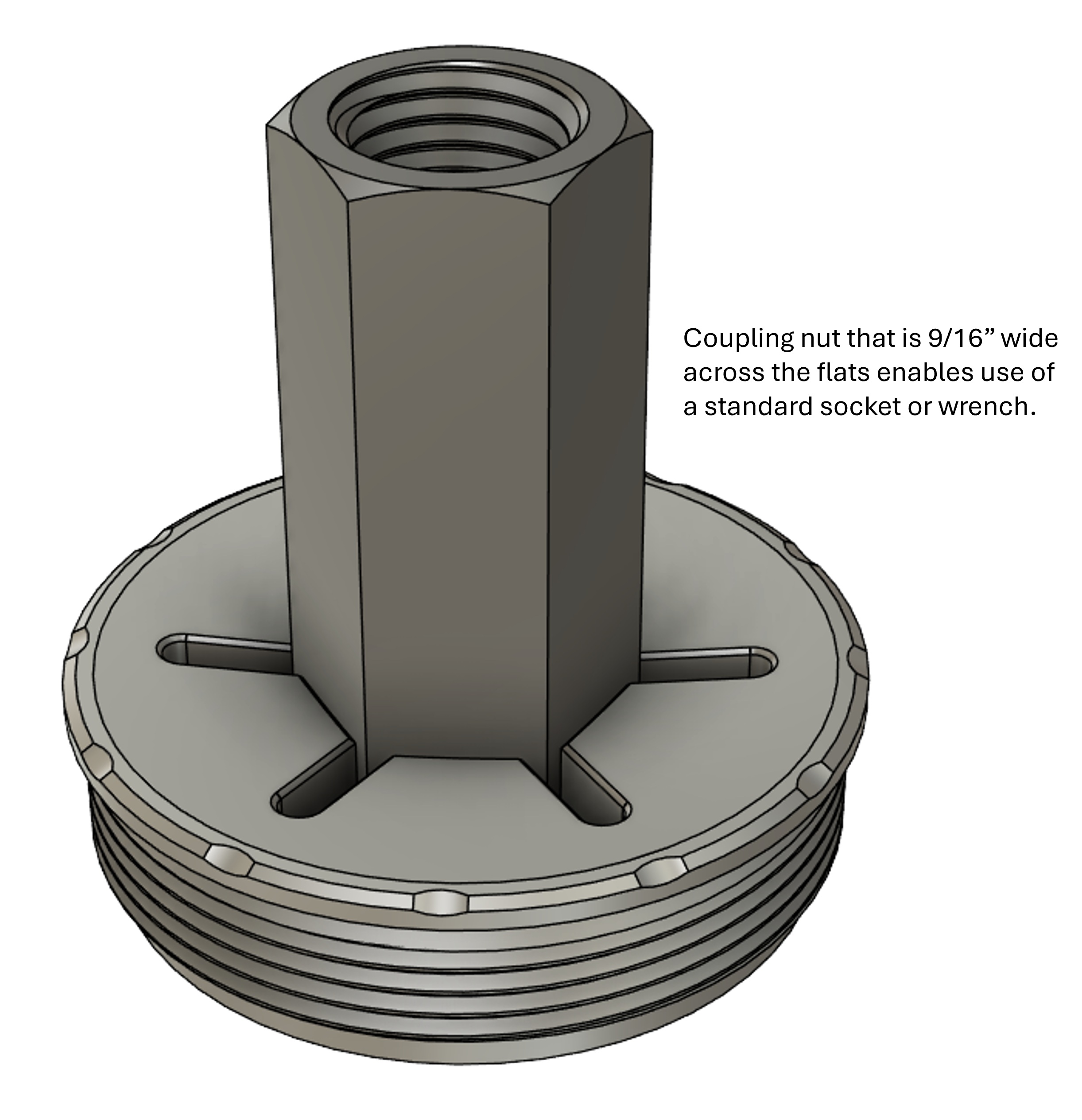

  • Flanged  0.618oz (Hex 9/16)
  • Flangeless  0oz

• Stainless steel (raw/ uncoated)
  • Weights:
  • Flanged  oz
  • Flangeless  oz
