1.025″ Modular Tabbed VSR

1.025″ Tab & Notch Modular Valve Spring Retainers

⚠️ NOTICE: Do not insert modular notched spacer without a valve attached to it. The Titanium spacers are slightly out of round because it is very thin walls, and this makes the sharp edges catch inside the bore when inserted. When attached to a valve, it brings it back to round and fits very smoothly inside the bore!
⚠️ If you get a spacer without a valve stuck in the bore- use only wood or plastic to slowly push and tap it out (pen or marker). DO NOT use a screwdriver or other metal prying tool!

1.025″ unfinished customizable tabbed valve spring retainers (VSR)

• 1.025″ nominal size (1.022″ actual OD)
• 0.330″ face diameter
• Ultralight engineered design
• Fully customizable to fit the valve stems of your choice
• Seat angle (or radius) matches industry standard seat cuts for easy fitment
• Precision machined to give valves a better sealing surface.
• Tabbed design for better alignment
• Skirt / spacer -less modular design gives you more build options
  • Modular skirt / spacer design gives you more build options, mix and match any material with any style of valve
  • Notched modular spacers are available in many sizes to fit your needs.
  • See picture gallery for fit-up details with non tabbed regular spacers and old style skirted VSR’s
• Stepped base provides a better seal with modular spacers.

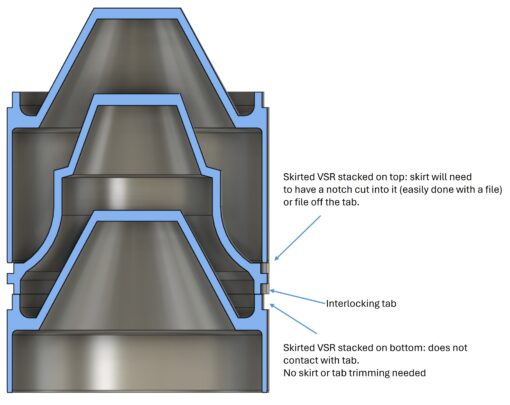

• Multiple VSR’s Can be stacked for added valve stem stability
